# Introduction to the ACS150 - 03E - 07A3 - 4 Product Series

## 1. Overview
The ACS150 - 03E - 07A3 - 4 belongs to the ACS150 product family, which is a well - recognized and reliable line of variable frequency drives (VFDs) designed and manufactured to meet a wide range of industrial and commercial motor control needs. Variable frequency drives are essential components in modern electrical systems as they allow for precise control of motor speed, torque, and power consumption, leading to increased efficiency and reduced wear and tear on motors.

## 2. Key Specifications

### Electrical Specifications
- **Input Voltage**: It is designed to operate with a 400 - 480V three - phase input voltage. This wide input voltage range makes it suitable for use in different electrical grids around the world, providing flexibility for global applications.
- **Output Current**: The drive can supply a rated output current of 7.3A. This current rating determines the size of the motor that the drive can effectively control. Motors with appropriate power ratings within the drive's current - handling capacity can be connected to achieve optimal performance.
- **Power Rating**: With the given current and voltage ratings, the drive is capable of handling motors with a power rating that is well - matched to its electrical capabilities. This ensures that the motor operates within its safe and efficient operating range.

### Frequency Range
- The ACS150 - 03E - 07A3 - 4 offers a frequency range of 0 - 500Hz for the output frequency. This wide frequency range allows for precise control of the motor speed. For applications that require high - speed operation, such as some industrial fans or pumps, the drive can provide the necessary high - frequency output. Conversely, for applications that need slow and precise movement, the low - frequency operation is also achievable.

## 3. Design and Build

### Compact Design
The drive features a compact and space - saving design. This is particularly beneficial in industrial settings where floor space is often at a premium. The small footprint allows for easy installation in control panels or cabinets, even in tight spaces. It can be mounted either horizontally or vertically, providing additional flexibility during the installation process.

### Robust Construction
It is built with high - quality components and a rugged enclosure. The enclosure is designed to protect the internal electronics from dust, moisture, and mechanical damage. This robust construction ensures reliable operation in harsh industrial environments, such as factories, mines, and outdoor installations.

## 4. Control and Functionality

### User - Friendly Interface
The ACS150 - 03E - 07A3 - 4 comes with a user - friendly control panel. The panel features a clear LCD display that shows important operating parameters such as motor speed, current, and frequency. It also has a set of intuitive buttons that allow users to easily navigate through the menu, set parameters, and start or stop the motor.

### Multiple Control Modes
The drive supports various control modes, including V/F control. This mode is simple and widely used, providing a basic yet effective way to control the motor speed by adjusting the voltage - to - frequency ratio. Additionally, it may support other advanced control modes depending on the specific application requirements, allowing for more precise control of the motor's performance.

### Built - in Protection Features
To ensure the safety and longevity of the drive and the connected motor, it is equipped with a range of built - in protection features. These include over - current protection, which prevents the drive from being damaged in case of excessive current flow. Over - voltage and under - voltage protection safeguard the drive from voltage fluctuations in the power supply. Thermal protection monitors the temperature of the drive and shuts it down if the temperature

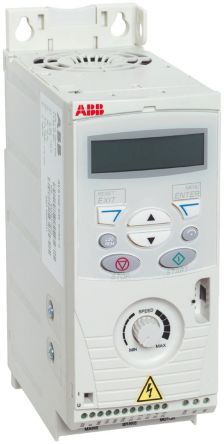

Images for reference
