ACPL-K34T
Optocouplers for automotive and other applications
Manufacturer： ['avago', 'broadcom']
series introduction
The ACPL-K34T Series is a state-of-the-art line of optocouplers designed for high-speed data transmission and isolation, making them an essential component in various electronic applications. These optocouplers utilize a high-performance GaAs (Gallium Arsenide) infrared light-emitting diode (LED) coupled with a high-sensitivity photodetector. This innovative design ensures superior electrical isolation, with a maximum isolation voltage of 5000 Vrms, thus providing robust protection against high voltages and transients in sensitive electronic circuits.
One of the standout features of the ACPL-K34T Series is its impressive data rate capability of up to 10 Mbps, enabling fast communication between devices. This makes it particularly suitable for applications requiring swift signal transmission, such as in industrial automation, telecommunications, and data acquisition systems. The series also boasts a wide operating temperature range from -40°C to +100°C, ensuring reliable performance in diverse environmental conditions, from extreme cold to high-temperature operations.
The design characteristics of the ACPL-K34T Series are focused on compactness and efficiency. With a small footprint and a low profile, these optocouplers can be easily integrated into space-constrained PCB layouts. Furthermore, the series features low input current requirements, which contributes to energy efficiency and reduced power consumption, aligning with modern demands for greener electronic solutions.
Typical applications for the ACPL-K34T Series include signal isolation in switch-mode power supplies, isolation between microcontroller and high-voltage sections of circuits, and level shifting in mixed-voltage systems. Additionally, they are widely utilized in medical devices, industrial control systems, and consumer electronics, where safety and performance are paramount.
In summary, the ACPL-K34T Series represents a perfect blend of speed, reliability, and compact design, making it a versatile choice for engineers looking to enhance the performance and safety of their electronic designs.

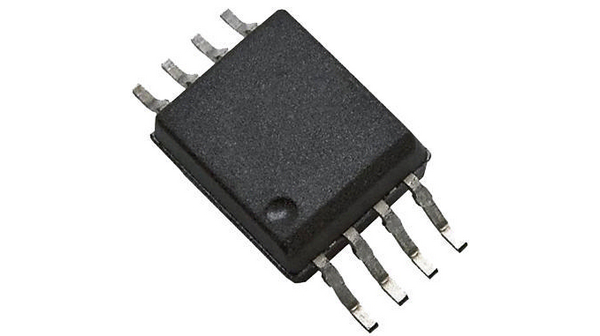

Images for reference
