ACPL-5161
Optocouplers for isolation and gate driving
Manufacturer： ['avago', 'broadcom']
series introduction
The ACPL-5161 Series is a range of high-performance optocouplers designed to provide exceptional isolation and signal integrity in various applications. This series is particularly known for its ability to deliver reliable data transmission with a high degree of noise immunity, making it ideal for critical communication links in industrial and consumer electronic systems. With an isolation voltage of up to 5,000 Vrms and a wide operating temperature range of -40°C to +100°C, the ACPL-5161 Series ensures robust performance even in the most demanding environments.
Featuring a compact dual-channel design, the ACPL-5161 is engineered for flexibility and efficiency. The integrated photodiode and phototransistor configuration allows for high-speed switching capabilities, with typical data rates reaching up to 10 Mbps. This makes the series suitable for applications requiring fast and reliable signal transmission, such as in programmable logic controllers (PLCs), industrial automation systems, and communication interfaces. The low power consumption of the ACPL-5161 further enhances its applicability in battery-operated devices, where energy efficiency is paramount.
The design of the ACPL-5161 Series includes features that enhance its performance and usability. The device is housed in a compact, surface-mount package that simplifies integration into printed circuit boards (PCBs), thereby saving valuable space in device designs. Additionally, the series offers a variety of input and output configurations, allowing engineers to select the most appropriate configuration for their specific application needs. This versatility makes the ACPL-5161 ideal for a wide range of industries, including automotive, telecommunications, medical devices, and consumer electronics.
In summary, the ACPL-5161 Series stands out as a reliable and efficient solution for applications requiring high-speed data transmission and electrical isolation. Its exceptional performance characteristics, combined with its compact design and energy efficiency, make it an excellent choice for engineers seeking to enhance the reliability and functionality of their electronic systems.
Images for reference

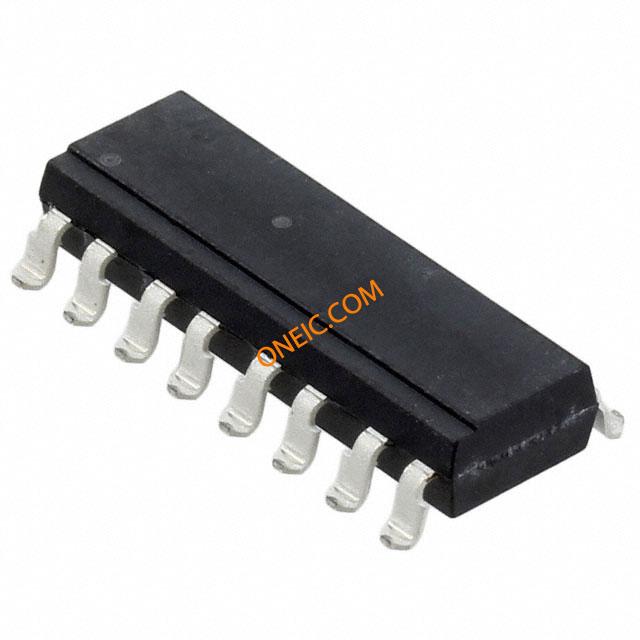

16-SMD, Gull Wing
