# ACM3225 - 271 - 2P Product Series Introduction
## 1. Overview
The ACM3225 - 271 - 2P product series represents a cutting - edge solution in the field of electronic components. Engineered with precision and innovation, this series is designed to meet the diverse and demanding requirements of modern electronic applications. Whether it's for consumer electronics, industrial automation, or telecommunications, the ACM3225 - 271 - 2P series offers reliable performance and high - quality functionality.
## 2. Physical Specifications
### 2.1 Dimensions
The ACM3225 - 271 - 2P components follow the 3225 package size standard. This means they have a length of 3.2mm, a width of 2.5mm, and a relatively low profile height, which is ideal for applications where space is at a premium. The compact size allows for easy integration into densely populated printed circuit boards (PCBs), enabling designers to create more compact and efficient electronic devices.
### 2.2 Pin Configuration
With a 2 - pin design, the ACM3225 - 271 - 2P simplifies the connection process on the PCB. The well - defined pin layout ensures accurate and secure soldering, reducing the risk of connection failures. The pins are designed to provide good electrical conductivity and mechanical stability, ensuring long - term reliability in various operating conditions.
## 3. Electrical Characteristics
### 3.1 Inductance
The "271" in the product model indicates the inductance value. In this case, the inductance is 270nH (since the last digit represents the number of zeros to be added after the first two digits). This specific inductance value makes the ACM3225 - 271 - 2P suitable for a wide range of filtering and impedance - matching applications. It can effectively filter out unwanted high - frequency noise and interference, improving the signal quality in electronic circuits.
### 3.2 Tolerance
The series offers a tight inductance tolerance, typically within a certain percentage (e.g., ±5% or ±10%, depending on the specific product variant). This high - precision tolerance ensures consistent performance across multiple components, which is crucial for applications where accurate inductance values are required for proper circuit operation.
### 3.3 DC Resistance (DCR)
The ACM3225 - 271 - 2P has a relatively low DC resistance. A low DCR is beneficial as it reduces power losses in the component, resulting in higher energy efficiency. This is especially important in battery - powered devices, where minimizing power consumption can significantly extend the battery life.
### 3.4 Self - Resonant Frequency (SRF)
The self - resonant frequency of the ACM3225 - 271 - 2P is carefully engineered to be within an appropriate range for its intended applications. The SRF determines the frequency at which the inductor's impedance reaches a maximum. By selecting an inductor with a suitable SRF, designers can optimize the performance of the circuit at the desired operating frequencies.
## 4. Performance and Reliability
### 4.1 Temperature Stability
The ACM3225 - 271 - 2P series is designed to maintain stable performance over a wide temperature range. It can operate effectively in both high - and low - temperature environments, making it suitable for applications in various climates and industrial settings. The temperature coefficient of inductance is carefully controlled to ensure that the inductance value remains relatively constant with temperature variations.
### 4.2 Current Handling Capacity
These components are capable of handling a certain amount of direct current (DC) without significant degradation in performance. The

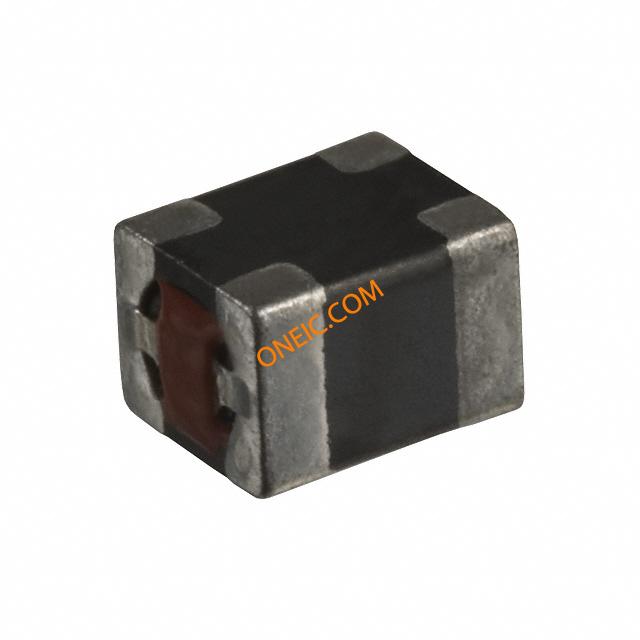

ACM3225-800-2P

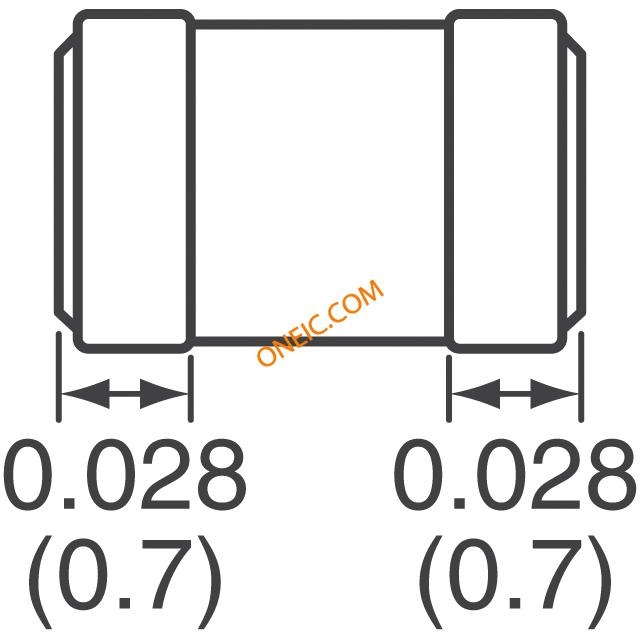

ACM3225-xxx-2P_Side

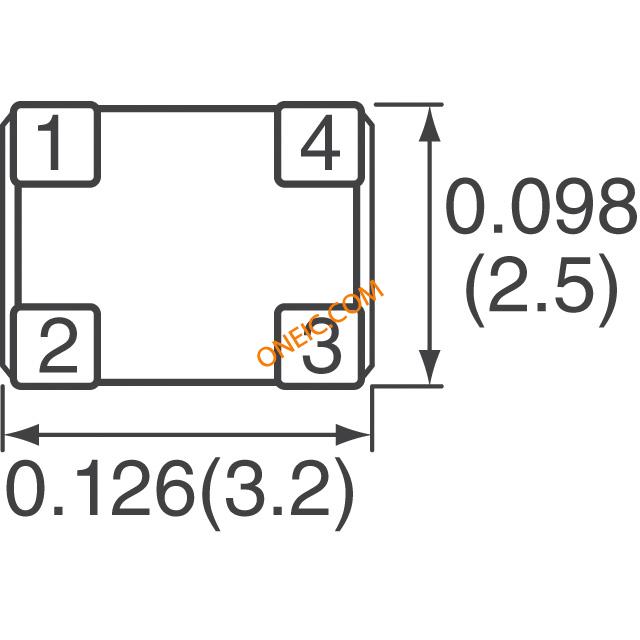

ACM3225-xxx-2P_Top
