ACM2012D
SMD EMI filters and common mode chokes
Manufacturer： tdk
series introduction
The ACM2012D Series is a distinguished line of high-performance, surface-mount inductors designed specifically for applications requiring exceptional efficiency and compact form factors. These inductors are engineered to meet the rigorous demands of modern electronic systems, featuring a robust construction that ensures both reliability and performance in various environments.
One of the standout characteristics of the ACM2012D Series is its use of a ferrite core material, which not only minimizes core losses but also enhances magnetic performance. This design choice allows for higher current ratings without compromising on size, making these inductors ideal for high-frequency applications. The series also boasts low DC resistance (DCR), which translates to reduced heat generation and increased energy efficiency, a crucial factor in today’s energy-conscious designs.
With a footprint of 2.0 mm x 1.25 mm, the ACM2012D Series is tailored for high-density PCB layouts, making it suitable for a wide range of applications, including but not limited to power management circuits, DC-DC converters, and EMI suppression in consumer electronics. Its compact size allows engineers to integrate these inductors seamlessly into devices such as smartphones, tablets, and wearable technology, where space is at a premium.
The ACM2012D Series is particularly well-suited for the automotive and industrial sectors, where reliability and performance are paramount. These inductors can withstand harsh operating conditions, including temperature extremes and mechanical vibrations, making them ideal for critical applications such as electric vehicle powertrains and industrial automation systems.
In summary, the ACM2012D Series offers a blend of compact design, high performance, and versatility, making it an excellent choice for engineers looking to enhance the functionality and efficiency of their electronic designs across various industries.

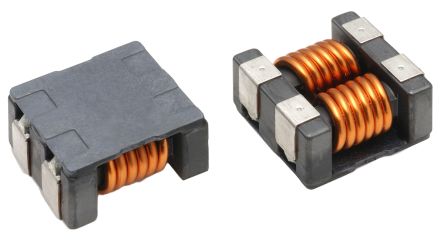

Images for reference
ACM2012 Series
Image Preview
Image Preview
