ACM-0603
SMD common mode filters/chokes for various currents
Manufacturer： abracon
series introduction
The ACM-0603 Series is a distinguished line of high-performance inductors designed for surface-mount applications, combining compact form factor with exceptional electrical characteristics. Measuring just 0.06 inches by 0.03 inches (1.6 mm x 0.8 mm), these inductors are specifically engineered to meet the demands of modern electronic devices where space is at a premium. The ACM-0603 Series utilizes advanced magnetic materials and precision manufacturing techniques to provide high inductance values while maintaining low DC resistance, resulting in improved efficiency and performance in power management applications.
One of the standout features of the ACM-0603 Series is its wide range of inductance values, which makes it versatile for various applications, from filtering to energy storage. The inductors are optimized for high-frequency operation, ensuring superior performance in environments where electromagnetic interference (EMI) and signal integrity are critical concerns. Additionally, these inductors are available in different current ratings, providing flexibility for designers to select components that match their specific requirements without compromising on performance.
The robust design of the ACM-0603 Series not only enhances its electrical characteristics but also contributes to its reliability and longevity. These inductors are constructed to withstand high temperatures and harsh operating conditions, making them suitable for automotive, industrial, and consumer electronics applications. Their compact size and high performance make them particularly ideal for mobile devices, wearable technology, and IoT (Internet of Things) devices, where both efficiency and reliability are paramount.
In summary, the ACM-0603 Series stands out as an essential component for engineers and designers looking for a reliable, high-performance inductor solution. Whether used in DC-DC converters, RF applications, or power supply circuits, these inductors deliver outstanding efficiency and performance, thereby enhancing the overall functionality of modern electronic systems.
Images for reference

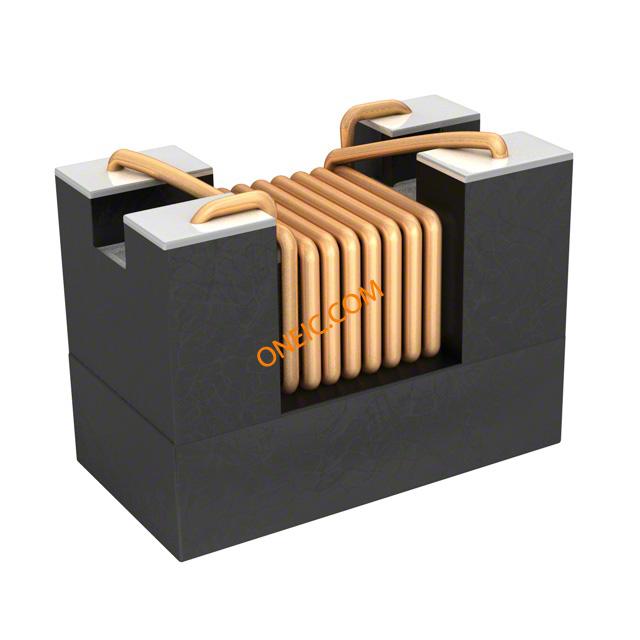

Horizontal, 4 PC Pad
