ABM8-24.000MHZ-B2-T

Compact 24MHz ceramic crystals for precise timing applications

Manufacturer: abracon

series introduction

# ABM8-24.000MHZ-B2-T Product Series Introduction

## 1. Overview
The ABM8 - 24.000MHZ - B2 - T product series represents a cutting - edge line of electronic components, specifically oscillators, designed to meet the high - precision frequency requirements of modern electronic systems. These oscillators are engineered with advanced technology and high - quality materials to ensure reliable and stable performance in a wide range of applications.

## 2. Key Specifications

### Frequency
The ABM8 - 24.000MHZ - B2 - T oscillators operate at a precise frequency of 24.000 MHz. This specific frequency is widely used in various electronic devices, such as communication equipment, microcontrollers, and data processing systems, as it provides a suitable clock signal for efficient operation.

### Package
The series comes in a well - designed package that offers several advantages. The package is compact, which is beneficial for applications where space is limited, such as in portable electronic devices. It also provides excellent protection for the internal components, shielding them from environmental factors like dust, moisture, and mechanical shock.

### Temperature Stability
These oscillators are known for their outstanding temperature stability. They can maintain a consistent frequency output over a wide temperature range. This is crucial in applications where the operating environment may experience significant temperature variations, such as in automotive electronics, industrial control systems, and outdoor communication equipment. The high - level temperature stability ensures that the performance of the overall system remains unaffected by temperature changes.

### Aging Rate
The ABM8 - 24.000MHZ - B2 - T oscillators have a low aging rate. Aging refers to the gradual change in frequency over time due to factors like component degradation. A low aging rate means that the oscillator will maintain its specified frequency accuracy for a longer period, reducing the need for frequent calibration and ensuring long - term reliability of the electronic system.

## 3. Technical Features

### Low Phase Noise
Phase noise is an important parameter in oscillator performance. The ABM8 - 24.000MHZ - B2 - T series features low phase noise, which results in a cleaner and more stable output signal. This is especially important in communication systems, where low phase noise helps to improve signal quality, reduce interference, and enhance the overall performance of the communication link.

### High - Quality Quartz Crystal
At the heart of these oscillators is a high - quality quartz crystal. Quartz crystals are known for their excellent piezoelectric properties, which allow them to generate a stable and accurate frequency. The use of high - grade quartz in the ABM8 - 24.000MHZ - B2 - T series ensures the reliability and precision of the oscillator's frequency output.

### ESD Protection
The oscillators are equipped with electrostatic discharge (ESD) protection. ESD can cause damage to electronic components, especially in sensitive applications. The built - in ESD protection in the ABM8 - 24.000MHZ - B2 - T series safeguards the oscillator from electrostatic shocks, increasing its durability and reducing the risk of failure.

## 4. Applications

### Communication Systems
In wireless communication devices such as smartphones, tablets, and routers, the ABM8 - 24.000MHZ - B2 - T oscillators are used to generate the clock signals required for data transmission and reception. Their high - precision frequency and low phase noise ensure reliable and efficient communication.

### Industrial Automation
Industrial control systems rely on accurate timing signals for proper operation. These oscillators are used in programmable logic controllers (PLCs), motor control units, and other industrial automation equipment to provide stable clock signals, enabling precise control and synchronization of various processes.

### Automotive Electronics
In the automotive industry, the ABM8 - 2

Images for reference

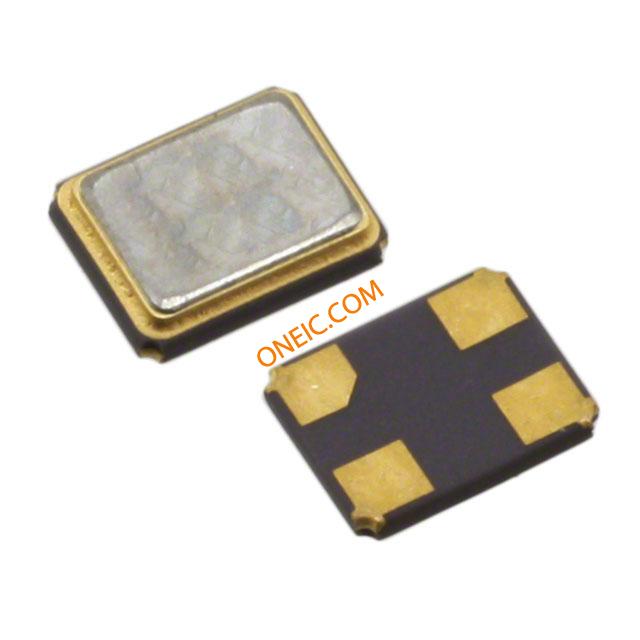

ABM8 SERIES - 4-SMD, No Lead (DFN, LCC)

ABM8 SERIES - 4-SMD, No Lead (DFN, LCC)

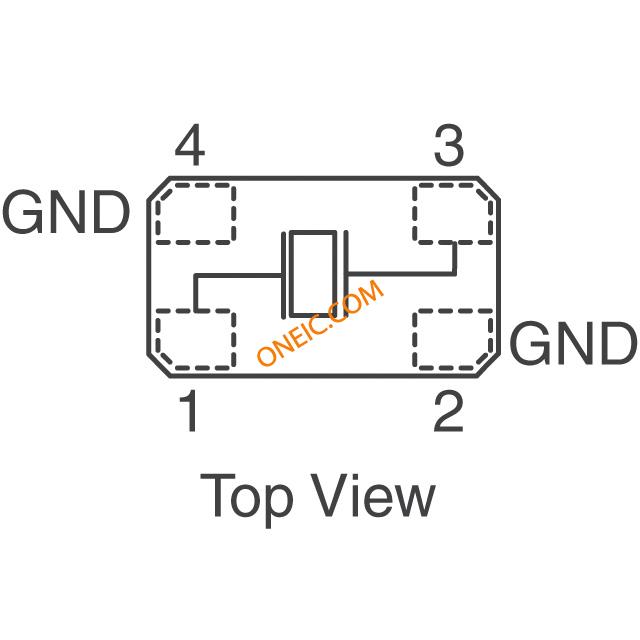

ABM8 Series Circuit

ABM8 Series Circuit

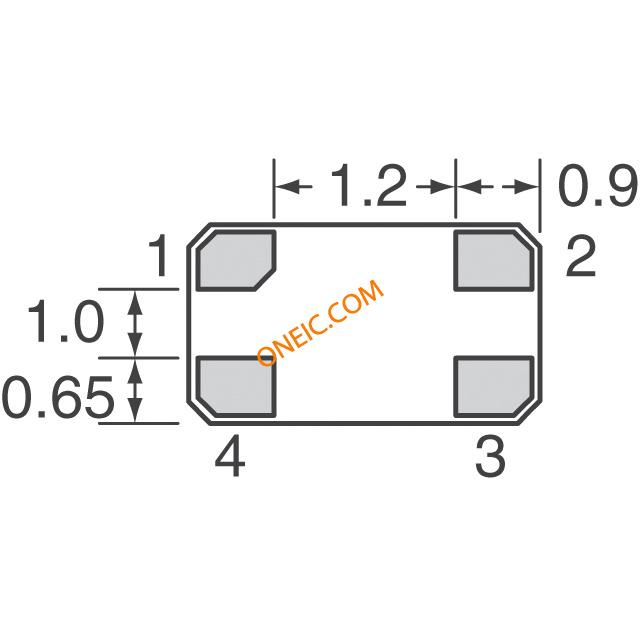

ABM8 Series Footprint

ABM8 Series Footprint
