A3988
Motor drivers in different packages
Manufacturer： ['cooper-b-line', 'allegro']
series introduction
The A3988 series is a highly integrated microstepping driver designed for controlling bipolar stepper motors, making it an invaluable component in precision motion control applications. This series is renowned for its robust performance, ease of use, and versatility, catering to a wide array of industries such as robotics, 3D printing, CNC machinery, and automation systems.
One of the standout features of the A3988 series is its advanced current control technology, which incorporates a mixed decay mode for optimal step resolution and smooth motor operation. This allows for precise positioning and torque control, significantly reducing step loss and improving overall efficiency. The A3988 provides adjustable current limiting with a simple external resistor, enabling users to tailor the output to match specific motor requirements without compromising performance. Additionally, the built-in thermal shutdown and under-voltage lockout protect the device from overheating and potential damage, ensuring long-term reliability in demanding environments.
The design characteristics of the A3988 series include a compact footprint, making it ideal for space-constrained applications. Its surface-mount configuration allows for easy integration into various circuit designs, facilitating rapid prototyping and development. The series supports microstepping up to 1/16 steps, which enhances motion smoothness and reduces noise, a critical factor in applications requiring high precision and low vibration.
In terms of suitable use cases, the A3988 series excels in applications such as 3D printers, where precise control of the stepper motor is essential for producing high-quality prints. It is also widely utilized in automated equipment, such as pick-and-place machines, where rapid and accurate positioning is paramount. Furthermore, the A3988 is suitable for use in medical devices, where reliability and precision are critical.
Overall, the A3988 series stands out as a versatile and efficient microstepping driver that provides manufacturers and engineers with the tools necessary to achieve high performance in their motion control systems. Its combination of advanced features, reliable operation, and compact design makes it an excellent choice for a wide range of applications across various industries.
Images for reference

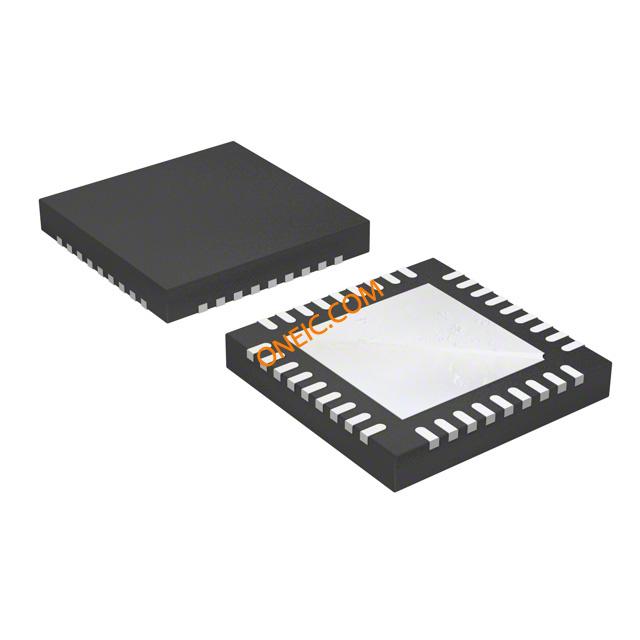

36-VFQFN Exposed Pad
