A3977SLP
2.5A, 3 - 5.5V 28 - Pin TSSOP motor drivers
Manufacturer： allegro
series introduction
The A3977SLP Series is a highly versatile and efficient line of dual H-bridge motor drivers, specifically engineered to drive small DC motors and stepper motors. This series is particularly renowned for its compact design, high performance, and integrated features that simplify motor control in various applications. The A3977SLP motor drivers are designed to accommodate a wide range of voltage levels, typically operating from 8 to 35 volts, making them suitable for both battery-powered devices and applications requiring higher power supply voltages.
Key features of the A3977SLP Series include its ability to deliver up to 1.5A continuous output current per channel, which ensures robust performance even under demanding load conditions. Integrated thermal shutdown and current limiting functionalities provide essential protection, contributing to the reliability and longevity of the device in various environments. Additionally, the A3977SLP utilizes PWM (Pulse Width Modulation) for speed control, enabling smooth operation and precise control over motor performance. The built-in fault detection mechanism further enhances operational safety by signaling errors or malfunctions, allowing for prompt corrective action.
The design characteristics of the A3977SLP Series are optimized for minimal footprint while maximizing functionality. With its small SOIC package, the series is suitable for applications where space constraints are a significant consideration, such as in consumer electronics, robotics, and home automation systems. The integration of multiple functions into a single chip reduces the need for external components, thus streamlining the design process and minimizing overall system complexity.
Typical applications of the A3977SLP Series span across various industries, including automotive, where they can be employed for controlling window motors or seat adjustments, and in industrial automation for driving conveyor belts or actuators. Furthermore, they are well-suited for applications in medical equipment, such as pumps and positioning systems, where precise motor control is crucial. Overall, the A3977SLP Series stands out as a reliable choice for engineers seeking efficient and compact solutions for motor control in a wide array of applications.
Images for reference

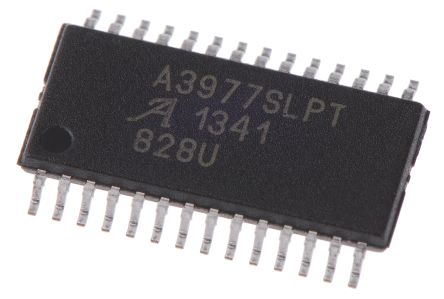

28-TSSOP
Image Preview
Image Preview
