A1106
High-speed steel drills and Hall effect devices
Manufacturer： ['roebuck', 'siemens-energy', 'allegro', 'dormer']
series introduction
The A1106 Series is a highly versatile range of Hall-effect sensors designed to deliver precise magnetic field detection capabilities in a compact package. These sensors are engineered for both automotive and industrial applications, featuring a robust construction that ensures reliability and longevity in various operating environments. The A1106 Series stands out for its ability to operate over a wide voltage range, typically from 4.5V to 38V, making it compatible with a diverse array of power supply configurations. This flexibility allows for seamless integration into numerous electronic systems.
One of the key features of the A1106 Series is its exceptional sensitivity to magnetic fields, enabling accurate detection of magnetic flux densities as low as a few milliteslas. This sensitivity is complemented by a fast response time, ensuring that the sensor can keep up with dynamic changes in magnetic fields, which is critical in applications such as motor control and position sensing. Additionally, the A1106 Series incorporates built-in temperature compensation, enhancing performance stability across varying thermal conditions.
The design of the A1106 sensors emphasizes compactness and ease of use, featuring a small footprint that facilitates integration into space-constrained environments. The device is available in several package types, including surface-mount and through-hole options, providing flexibility in PCB design and assembly processes. The pin configuration is optimized for straightforward connections, ensuring that engineers can quickly implement the sensors in their designs.
Typical applications of the A1106 Series include automotive systems such as wheel speed detection, crankshaft position sensing, and throttle position monitoring. Furthermore, these sensors are widely used in industrial automation for proximity sensing, current sensing, and as part of feedback loops in motor control systems. With their robust performance, versatility, and ease of integration, the A1106 Series Hall-effect sensors are an ideal choice for engineers looking to enhance the functionality and reliability of their electronic systems.
Images for reference
SOT-23-3

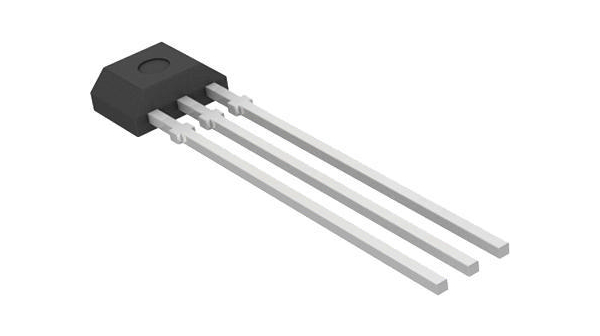

3-SIP
