8532-22

series introduction

The 8532-22 Series is a versatile range of high-performance precision resistors designed to meet the demanding requirements of modern electronic applications. Known for their exceptional accuracy, stability, and low thermal coefficient, these resistors are ideal for a variety of industrial, automotive, and consumer electronics applications. The 8532-22 Series utilizes advanced thin-film technology, which ensures superior performance characteristics and reliability, making them a preferred choice for engineers and designers seeking robust solutions for their circuitry.

One of the standout features of the 8532-22 Series is its tight tolerance specification, typically within ±0.1% to ±0.5%. This level of precision is critical in applications where accuracy is paramount, such as precision measurement systems, calibration devices, and data acquisition systems. Additionally, the resistors exhibit a low temperature coefficient of resistance (TCR), typically around 5 ppm/°C, which guarantees consistent performance across a wide temperature range. This characteristic is particularly beneficial in environments subject to temperature fluctuations, ensuring that the resistor's performance remains stable and predictable.

The design of the 8532-22 Series emphasizes compactness and ease of integration. Available in a range of surface-mount package sizes, these resistors are optimized for space-constrained applications, allowing engineers to design smaller and more efficient circuits without compromising performance. Their robust construction also provides excellent resistance to mechanical stress and environmental factors, enhancing their suitability for demanding industrial applications.

Typical applications for the 8532-22 Series include precision analog circuits, automotive control systems, medical instrumentation, and telecommunications equipment. Their reliability and performance make them an excellent choice for systems requiring high levels of accuracy and long-term stability. Overall, the 8532-22 Series represents a significant advancement in resistor technology, providing engineers with the tools they need to create highly efficient and reliable electronic systems.

Images for reference

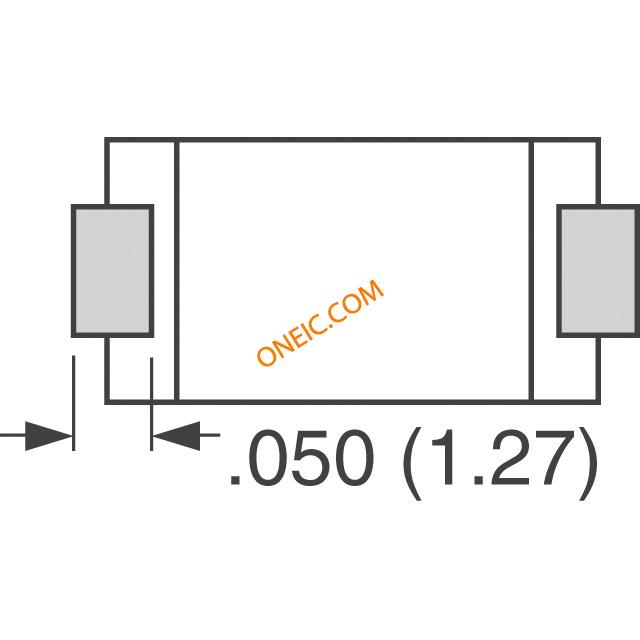

8532 Series

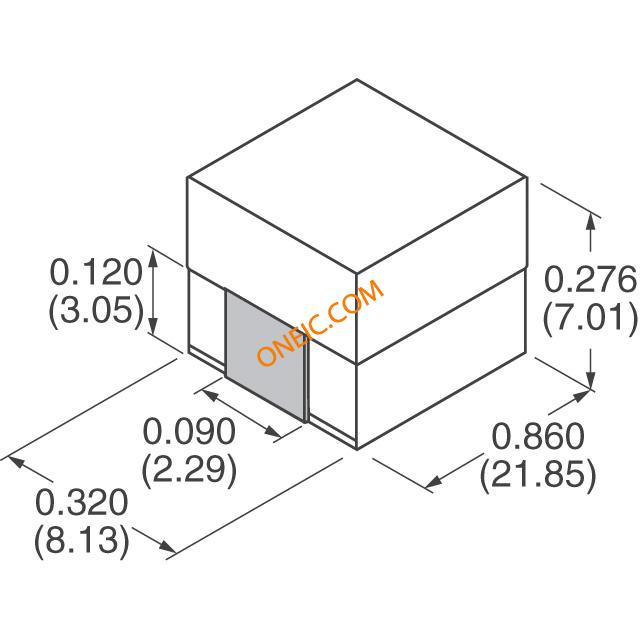

8532(R) Series

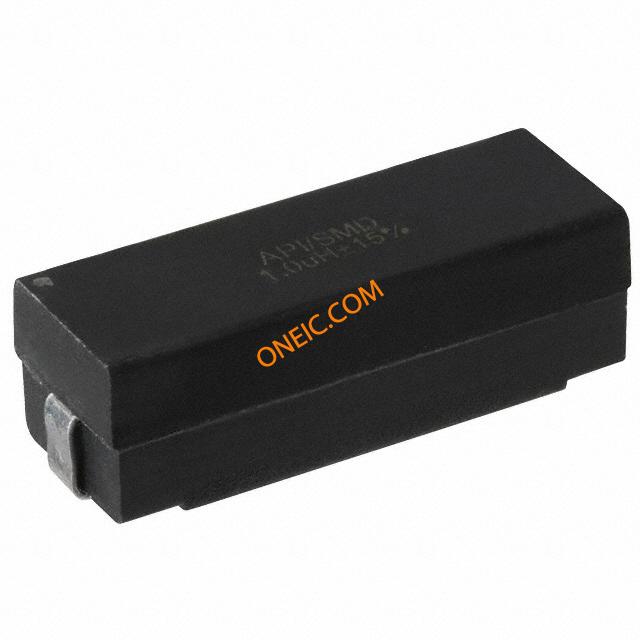

8532 Series, Bottom

Datasheets

• 8532(R) Series

Partlist
