74LVC2G53DP
Analog multiplexer ICs in 8TSSOP form factor
Manufacturer： ['nexperia', 'nxp']
series introduction
The 74LVC2G53DP Series is a cutting-edge line of dual 2-channel analog multiplexers and demultiplexers designed for high-speed signal routing in a wide array of electronic applications. This series stands out for its low-voltage operation, making it compatible with both 1.65V to 5.5V power supply ranges, which is essential for modern battery-operated devices. The device features a high-speed switching capability with a propagation delay as low as 3.5 ns at 5V, ensuring swift signal transmission and minimal signal degradation.
Engineered with a focus on versatility, the 74LVC2G53DP Series supports a wide range of input/output configurations, allowing for seamless integration into various circuit designs. Each multiplexer can handle two separate signal paths, enabling designers to efficiently manage multiple data streams without the need for additional components. The device also features an active-low select input, which simplifies circuit design and reduces the complexity of control logic.
In terms of design characteristics, the 74LVC2G53DP Series embraces a compact 8-pin package, making it particularly suitable for space-constrained applications. The device's low on-state resistance (Ron) minimizes power loss and enhances overall efficiency, which is critical in applications requiring battery life optimization. Furthermore, the series is designed to handle a wide operating temperature range, making it reliable for use in various environmental conditions.
This product series is ideal for a variety of applications, including portable electronics, telecommunications, and consumer devices where reliable signal routing is paramount. Typical use cases encompass data acquisition systems, audio/video switching, and signal multiplexing in communication devices. By offering robust performance and flexibility, the 74LVC2G53DP Series empowers engineers to create innovative solutions that meet the demands of today’s fast-paced electronic landscape. Whether in consumer electronics or industrial automation, this series delivers the performance and reliability necessary for modern applications.
Images for reference

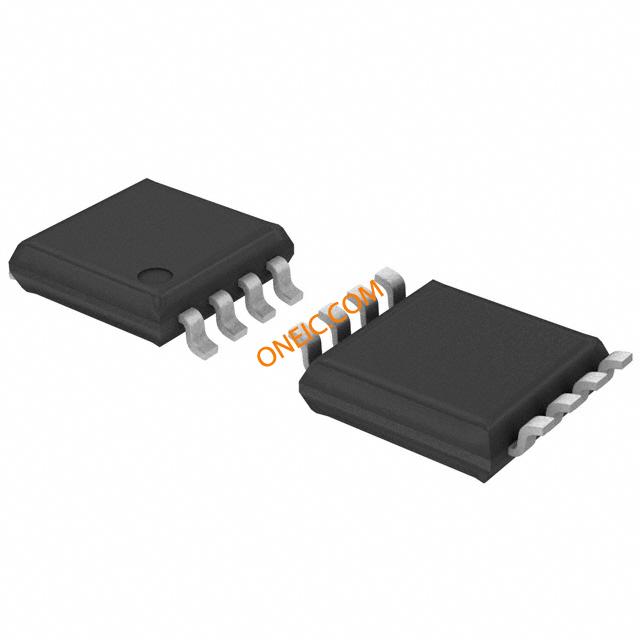

8-TSSOP_SOT505-2 PKG
