3296X-1-104
100kΩ cermet trimmer resistors, through - hole type
Manufacturer： ['bochen', 'bourns']
series introduction
The 3296X-1-104 Series is a premium line of multi-turn potentiometers designed to provide precise control and adjustment in a variety of electronic applications. Renowned for their robust construction, these potentiometers are housed in a durable, compact package that is well-suited for both through-hole and surface-mount configurations. The series features a notable resistance value of 100 kΩ, offering a reliable means of adjusting voltage levels, signal amplitudes, and other critical parameters in electronic circuits.
One of the key features of the 3296X-1-104 Series is its multi-turn design, which allows for fine-tuning adjustments with a high degree of accuracy. This characteristic is particularly beneficial in applications requiring meticulous calibration, such as audio equipment, test and measurement devices, and industrial control systems. The user-friendly design of the multi-turn mechanism enables smooth operation, ensuring that users can achieve their desired settings without the risk of overshooting or instability.
The construction of the 3296X-1-104 Series emphasizes longevity and reliability. With a temperature coefficient of ±100 ppm/°C, these potentiometers maintain stable performance across a wide temperature range, making them suitable for use in both consumer and industrial environments. The series is also designed to endure significant mechanical stresses, assuring functionality even under rigorous conditions.
This potentiometer series finds its applications across various industries, including telecommunications, automotive electronics, and medical devices. For instance, they can be utilized in circuit boards for signal processing, where precise resistance adjustment is crucial for optimal performance. Additionally, their ability to handle varying load conditions makes them ideal for use in feedback control systems, which require accurate sensing and adjustment of voltage levels.
In summary, the 3296X-1-104 Series potentiometers stand out due to their exceptional precision, durable design, and versatility across numerous applications. Whether used in R&D, production, or maintenance, they provide engineers with the reliable performance and accuracy needed to enhance the functionality of their electronic systems.
Images for reference
3296X Series

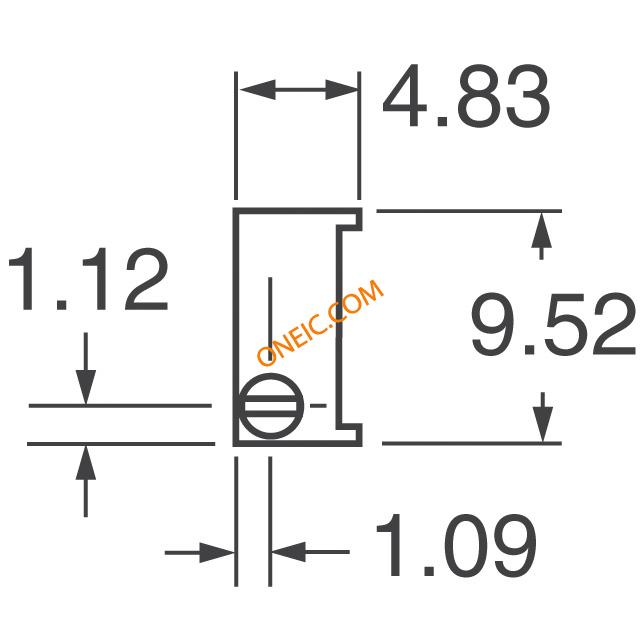

3296 Series Side 1
3296 Series Side 2
