24FC512-I/ST
High-speed serial EEPROM memory with I2C interface, 512K-bit capacity
Manufacturer： microchip
series introduction
# Introduction to the 24FC512 - I/ST Product Series
## 1. Overview
The 24FC512 - I/ST is a remarkable product series within the realm of semiconductor memory devices. It belongs to the family of Electrically Erasable Programmable Read - Only Memory (EEPROM) chips, which are widely used in a variety of electronic applications due to their non - volatile nature and ease of use.
## 2. Key Features
### Memory Capacity
The 24FC512 - I/ST offers a substantial memory capacity of 512 kilobits (64 kilobytes). This large storage space makes it suitable for applications that require the storage of significant amounts of data, such as configuration settings, calibration data, and historical records.
### Interface
It utilizes the I²C (Inter - Integrated Circuit) serial interface. This interface is well - known for its simplicity and efficiency, allowing for easy communication between the EEPROM and other components in a system. The I²C interface operates on a two - wire bus (Serial Data Line - SDA and Serial Clock Line - SCL), which reduces the number of pins required for communication and simplifies the overall circuit design.
### Low Power Consumption
One of the standout features of the 24FC512 - I/ST is its low power consumption. In today's energy - conscious world, this is a crucial factor, especially for battery - powered devices. The chip is designed to operate with minimal power requirements during both read and write operations, helping to extend the battery life of the end - product.
### High - Speed Operation
The series supports relatively high - speed data transfer rates. This enables quick access to stored data, which is essential for applications where real - time data retrieval or storage is required. The fast operation ensures that the system can respond promptly to user commands or changing conditions.
### Endurance and Data Retention
The 24FC512 - I/ST has a high endurance rating, typically capable of performing a large number of write cycles (e.g., 1 million write cycles). Additionally, it offers excellent data retention, with the ability to retain stored data for up to 100 years under normal operating conditions. This makes it a reliable choice for long - term data storage applications.
## 3. Package Options
The 24FC512 - I/ST is available in various package options to suit different application requirements. Common package types include the 8 - lead Small Outline Integrated Circuit (SOIC) and the 8 - lead Thin Small Outline Package (TSSOP). These packages are compact and easy to mount on printed circuit boards (PCBs), making them suitable for both small - scale and large - scale electronic designs.
## 4. Applications
### Consumer Electronics
In consumer electronics, the 24FC512 - I/ST can be used in devices such as smartwatches, fitness trackers, and digital cameras. It can store user preferences, device settings, and captured data, ensuring that the device remembers the user's choices even when powered off.
### Industrial Automation
Industrial automation systems often require the storage of configuration data, calibration values, and historical process data. The 24FC512 - I/ST can be integrated into programmable logic controllers (PLCs), motor drives, and sensor nodes to provide reliable non - volatile storage.
### Automotive Electronics
In the automotive industry, the chip can be used in various applications, including engine control units (ECUs), infotainment systems, and advanced driver - assistance systems (ADAS). It can store critical data such as vehicle diagnostic information, user - set preferences, and calibration data for sensors.
### Medical Devices
Medical devices, such as patient monitors and portable diagnostic equipment, rely on non
Images for reference

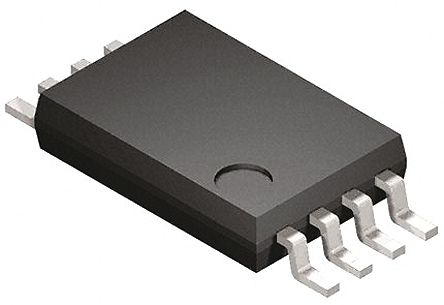

8-TSSOP
