1SS352

Low-current diode rectifiers and switches

Manufacturer: toshiba

series introduction

The 1SS352 Series is a range of high-performance Schottky barrier diodes (SBDs) designed to deliver efficient rectification and switching capabilities in various electronic applications. Renowned for their low forward voltage drop and fast switching speeds, these diodes are ideal for applications requiring high efficiency and minimal power loss. The 1SS352 Series features a maximum repetitive reverse voltage of 40V, enabling effective performance in a wide array of electronic circuits.

One of the key design characteristics of the 1SS352 Series is its compact surface-mount package, which facilitates easy integration into high-density circuit boards. This design not only saves valuable board space but also enhances thermal performance due to its efficient heat dissipation capabilities. The diodes are constructed with advanced semiconductor materials that ensure outstanding reliability and long-term stability, making them suitable for demanding environments.

The 1SS352 Series is particularly well-suited for power supply applications, such as AC-DC converters, where efficiency is paramount. Its low leakage current combined with high switching speeds makes it an excellent choice for synchronous rectification in power management circuits. Additionally, these diodes are frequently utilized in RF applications, ensuring minimal signal distortion during high-frequency operations. With their ability to handle high surge currents, the 1SS352 Series is also ideal for automotive applications and other industrial environments where transient voltage spikes are common.

In summary, the 1SS352 Series Schottky barrier diodes represent a versatile solution for engineers seeking reliable performance in compact designs. Their combination of low forward voltage drop, high switching speed, and robust reliability makes them a preferred choice for applications in consumer electronics, renewable energy systems, telecommunications, and automotive electronics. As the demand for energy-efficient and space-saving components continues to grow, the 1SS352 Series stands out as a key player in the evolution of modern electronic circuitry.

Images for reference

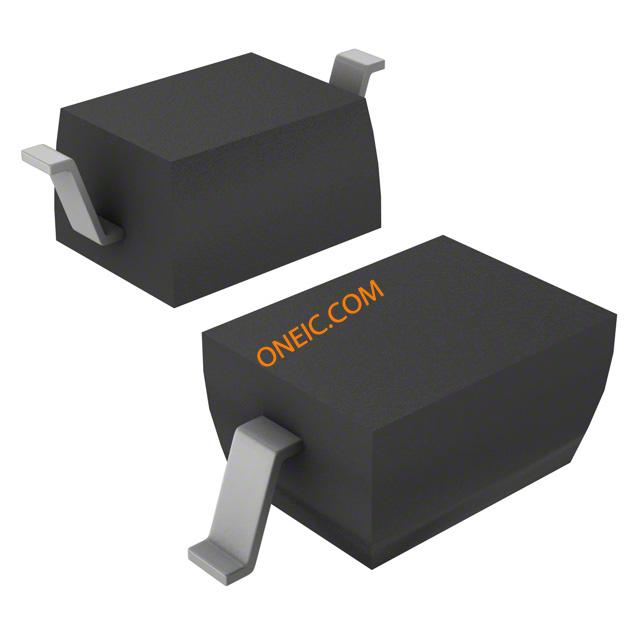

CUS10F30,H3F(T

CUS10F30,H3F(T

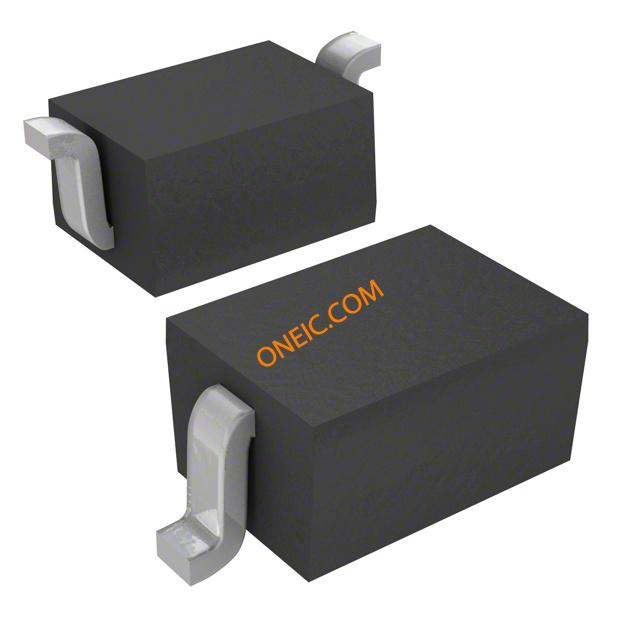

SC-76A

SC-76A

Image Preview

Image Preview

Datasheets

Partlist

1SS352,H3F
1SS352,H3F(B
1SS352(TH3,F,D)
1SS352TH3FT
1SS352(TH3,F,T)
1SS352(TPH3)
1SS352(TPH3,F)
1SS352TPH3F
