1PMT5.0AT
TVS diodes for transient voltage suppression
Manufacturer： ['littelfuse', 'rochester', 'onsemi']
series introduction
The 1PMT5.0AT Series is a highly versatile line of transient voltage suppressors (TVS) designed to protect sensitive electronic components from voltage spikes and transients. These devices are particularly effective for safeguarding against electrostatic discharge (ESD) and other transient events that can compromise the reliability and longevity of electronic systems. The 1PMT5.0AT Series integrates a unidirectional design that provides robust clamping performance while maintaining a low breakdown voltage of 5.0V, ensuring optimal protection for low-voltage applications.
One of the key features of the 1PMT5.0AT Series is its rapid response time, which is essential for mitigating potential damage from fast transients. With a peak power rating of 600W (8/20μs), these TVS devices are engineered to absorb significant power surges without compromising their performance. Furthermore, the series boasts a low clamping voltage, which minimizes the risk of overvoltage conditions that can harm sensitive devices. The 1PMT5.0AT's small DO-214AA (SMB) package makes it suitable for space-constrained applications, ensuring compliance with modern design requirements while providing effective surge protection.
These transient voltage suppressors are ideal for a wide range of use cases, particularly in consumer electronics, telecommunications, automotive, and industrial applications. They are commonly employed in devices such as smartphones, tablets, and other personal electronics where circuit protection is critical. Additionally, the 1PMT5.0AT Series is suitable for use in power supplies, data lines, and interfaces like USB, HDMI, and Ethernet, where ESD protection is paramount.
In summary, the 1PMT5.0AT Series stands out for its exceptional performance, compact design, and reliability, making it a preferred choice for engineers looking to enhance the durability of their electronic products against transient voltage threats. Whether in a mobile device or an industrial control system, the 1PMT5.0AT ensures that your circuitry remains safe and operational, even in the most demanding environments.
Images for reference

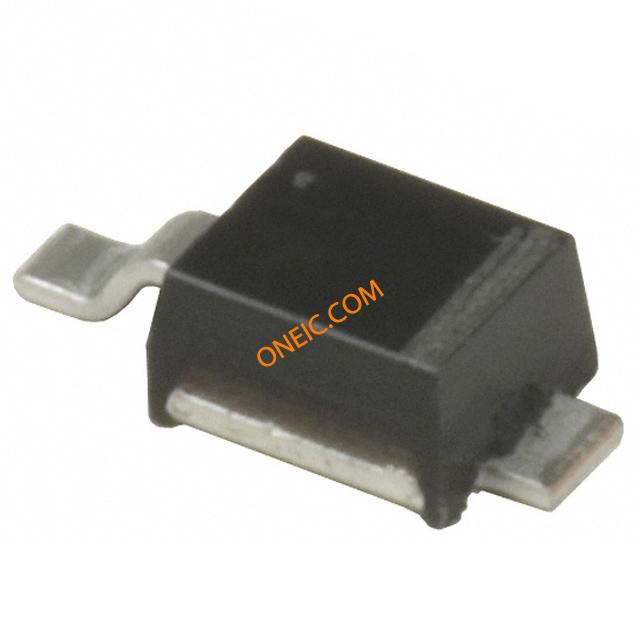

Powermite
