1N6481-E3
1A, 400V diodes in DO-213AB package
Manufacturer： ['vishay-general-semiconductor', 'vishay']
series introduction
The 1N6481-E3 Series is a line of high-voltage rectifier diodes designed to deliver exceptional performance in a wide array of applications. Engineered for robustness and efficiency, these diodes are optimized for power management and rectification tasks, making them indispensable components in various electrical and electronic systems. With a maximum repetitive reverse voltage (V_RRM) of 1000V and a forward current (I_F) rating of 1A, the 1N6481-E3 Series is well-suited for applications requiring reliable voltage regulation and rectification under high-stress conditions.
One of the key features of the 1N6481-E3 Series is its low forward voltage drop (V_F), which enhances overall circuit efficiency by minimizing power loss. This characteristic makes the diodes particularly advantageous in power supply circuits, where energy conservation is crucial. Additionally, the series exhibits fast switching speeds, enabling quick response times in rectifying applications, further contributing to their versatility in modern electronic designs.
The design of the 1N6481-E3 Series incorporates a glass passivated junction that provides superior reliability, increased thermal stability, and protection against environmental factors. This robust construction allows the diodes to function effectively in a variety of harsh conditions, from high-temperature industrial settings to compact consumer electronics. With a temperature range of -55°C to +150°C, they can handle demanding operational environments without compromising performance.
Typical applications for the 1N6481-E3 Series include power supply rectification, voltage clamping, and freewheeling in DC motor drives. Their efficiency and durability make them suitable for use in various industries, including automotive electronics, telecommunications, and renewable energy systems. Whether employed in switching power supplies, battery chargers, or industrial automation equipment, the 1N6481-E3 Series diodes provide a reliable solution for high-voltage rectification needs. Their combination of efficient performance, rugged design, and versatility ensures that they meet the rigorous demands of contemporary electronic applications.
Images for reference

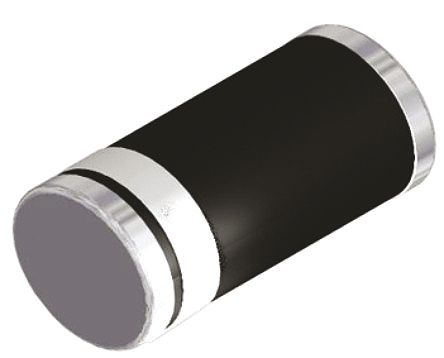

DO-213AB
Image Preview
Image Preview
