1N6392
Schottky diodes and rectifiers for various uses
Manufacturer： ['microsemi', 'iscsemi', 'vishay']
series introduction
The 1N6392 Series is a robust line of high-voltage rectifier diodes designed for a diverse range of applications in power electronics. With a maximum repetitive reverse voltage of 1000V and a forward current rating of up to 35A, these diodes are engineered to provide reliable performance in demanding environments. The 1N6392 Series is constructed using advanced silicon technology that ensures low forward voltage drop, resulting in enhanced efficiency and improved thermal management.
One of the key features of the 1N6392 Series is its ability to handle high surge currents, making it particularly suitable for applications where transient voltages may occur. This characteristic is vital in protecting sensitive components from damage during inrush conditions. The series also offers excellent reverse recovery characteristics, which minimizes switching losses and enhances the overall efficiency of power conversion systems.
The design of the 1N6392 diodes includes a glass passivation that provides excellent protection against environmental factors, ensuring long-term reliability and durability. Their axial-lead configuration enables straightforward integration into various circuit designs, making them suitable for both through-hole and automated assembly processes.
Typical use cases for the 1N6392 Series span a wide range of industrial and consumer applications, including power supplies, battery chargers, and motor control circuits. They are commonly used in AC to DC conversion applications, where they serve as critical components for rectifying alternating current. Additionally, their high-voltage capabilities make them ideal for use in telecommunications equipment and high-voltage power supplies.
In summary, the 1N6392 Series stands out for its high voltage capacity, low forward voltage drop, and exceptional surge handling capabilities. These attributes make it a trusted choice for engineers looking to design reliable and efficient power electronic systems across various industries, including automotive, industrial automation, and consumer electronics.
Images for reference

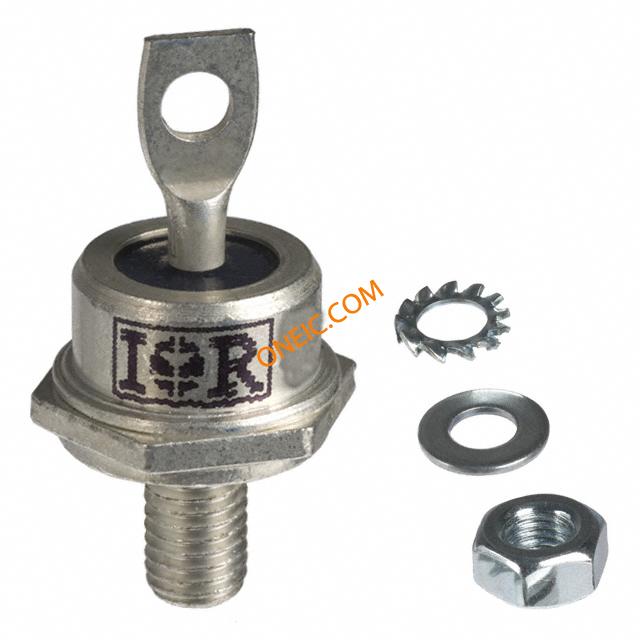

DO-5 Pkg
Image Preview
