1N5822RL
Schottky diodes, 3A 40V, 2 - Pin DO - 201AD
Manufacturer： ['rochester', 'stm', 'onsemi', 'lrc']
series introduction
The 1N5822RL Series is a range of high-performance Schottky barrier rectifiers designed for efficient power management in a variety of electronic applications. Renowned for their low forward voltage drop and high-speed switching capabilities, these diodes are ideal for use in power supply circuits, inverter applications, and battery charging systems. With a maximum repetitive reverse voltage of 40V and a forward current rating of 3A, the 1N5822RL diodes are engineered to handle significant power loads while maintaining thermal efficiency.
One of the standout features of the 1N5822RL Series is its low forward voltage drop, typically around 0.45V at 3A, which translates to reduced power loss and enhanced energy efficiency. This characteristic makes the series particularly suitable for applications where heat dissipation is a concern, as it minimizes the thermal management requirements. The Schottky design also ensures faster recovery times, allowing for improved switching speeds that are crucial in high-frequency applications.
The robust construction of the 1N5822RL Series provides excellent reliability and durability. These diodes are encapsulated in a DO-41 package, which not only ensures physical protection but also enhances thermal dissipation. This makes them suitable for environments with varying temperature conditions, thereby expanding their applicability across different industries.
Common use cases for the 1N5822RL Series include power rectification in power supplies, solar panel applications, and high-efficiency converters. Their ability to maintain performance under high temperatures and their low leakage current make them an attractive choice for both consumer electronics and industrial applications. Furthermore, the series is often employed in automotive systems for fast-switching rectification, demonstrating its versatility across various sectors.
In summary, the 1N5822RL Series stands out as a reliable and efficient solution for modern electronic design, offering outstanding performance in a compact form factor that meets the needs of today’s high-demand applications.
Images for reference

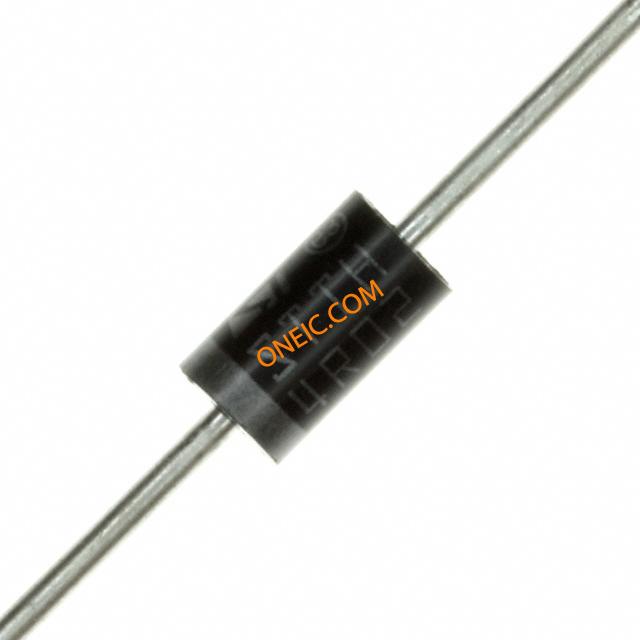

DO-201AB, AXIAL SERIES
