1N5822-T

3.0A 40V Schottky diodes for various uses

Manufacturer: ['diodes-zetex', 'micro-commerical-co', 'diodes', 'mcc', 'sensitron', 'rectron']

series introduction

The 1N5822-T series represents a robust line of Schottky barrier rectifiers, engineered for high-efficiency power applications across various industries. Notable for their low forward voltage drop and rapid switching capabilities, these diodes are designed to enhance energy efficiency in power conversion systems. With a maximum reverse voltage rating of 40 volts and a forward current rating of 3.0 amperes, the 1N5822-T series is ideal for applications requiring reliable performance under moderate to high-load conditions.

One of the key features of the 1N5822-T series is its low forward voltage drop, typically around 0.45 volts, which significantly reduces power losses and enhances overall circuit efficiency. This characteristic makes the diodes particularly well-suited for use in power supplies, where minimizing energy waste is critical. Additionally, the Schottky construction allows for fast recovery times, making these diodes perfect for switching power supplies, inverters, and other high-frequency applications.

The design of the 1N5822-T series incorporates a glass passivated junction, which provides superior reliability and thermal stability. This design feature ensures that the diodes can operate effectively in a wide temperature range, from -55°C to +150°C, making them versatile components for various environmental conditions. The compact DO-41 package facilitates easy integration into space-constrained designs, further enhancing their applicability in modern electronic systems.

Typical applications for the 1N5822-T series include use in power management circuits, battery chargers, and automotive electronics. Their ability to handle high surge currents and their inherent robustness make them suitable for demanding applications such as solar inverters, motor drives, and power factor correction circuits. As industries increasingly prioritize energy efficiency and compact design, the 1N5822-T Schottky barrier rectifiers stand out as a reliable choice for designers aiming to meet these challenges while ensuring performance and longevity in their applications.

Images for reference

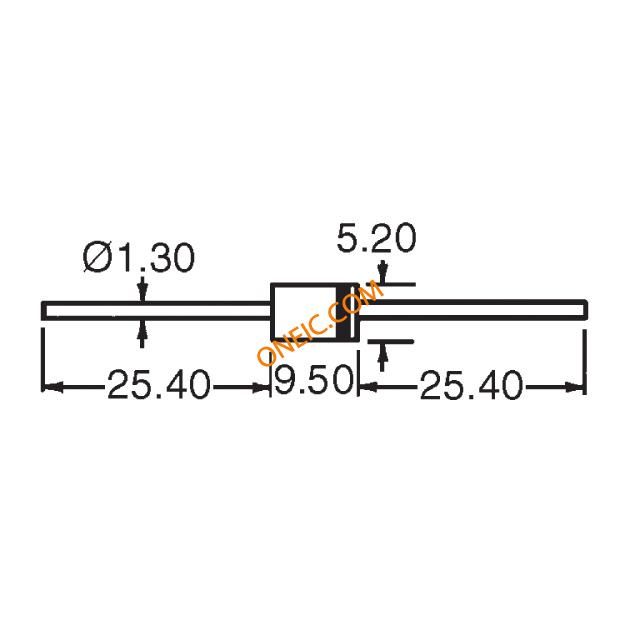

31-DO-201AD
