1N5819-T

Schottky diodes with 40V and 1A rating

Manufacturer: ['diodes-zetex', 'diodeszetex', 'micro-commerical-co', 'diodes', 'mcc', 'rectron']

series introduction

The 1N5819-T Series is a highly regarded line of Schottky barrier rectifiers designed to meet the demanding requirements of modern electronic applications. Renowned for their low forward voltage drop and fast switching capabilities, these diodes provide an efficient solution for power management and signal processing in various circuits. With a peak reverse voltage rating of 40V and a maximum forward current of 1A, the 1N5819-T Series ensures reliable operation in a compact package, making it an ideal choice for space-constrained designs.

One of the standout features of the 1N5819-T Series is its low forward voltage drop, typically around 0.45V at rated current. This characteristic significantly reduces power loss and improves overall energy efficiency in applications such as power supplies and battery chargers. The series also boasts a fast reverse recovery time, which minimizes the risk of switching losses in high-frequency applications, further enhancing its performance in dynamic circuits.

The design of the 1N5819-T Series incorporates a rugged construction that allows it to withstand harsh environments, making it suitable for various industrial and automotive applications. Its ability to perform reliably under high-temperature conditions (up to 125°C) ensures that it can be deployed in environments where thermal management is a concern. This robustness makes the series a popular choice for automotive electronics, including power distribution, motor control, and LED lighting systems.

In terms of typical applications, the 1N5819-T Series is widely used in DC-DC converters, solar inverters, and switch-mode power supplies. Its fast recovery and low leakage current characteristics make it particularly effective in energy-efficient designs, where minimizing losses is critical. Additionally, the series finds utility in telecommunications equipment and consumer electronics, where reliability and performance are paramount.

Overall, the 1N5819-T Series embodies a combination of efficiency, reliability, and versatility, making it a preferred choice for engineers seeking high-performance Schottky diodes in their electronic designs.

Images for reference

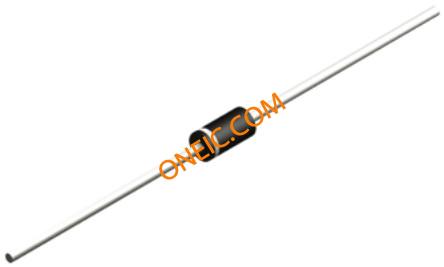

261-DO-41
