1N5637

TVS diodes for voltage suppression applications

Manufacturer: ['microsemi', 'littelfuse', 'dsi']

series introduction

The 1N5637 Series is a comprehensive range of silicon rectifier diodes that are specifically engineered to deliver robust performance in a variety of electrical applications. Renowned for their high-efficiency rectification capabilities, these diodes are particularly suitable for use in power supplies, battery chargers, and other energy conversion systems. With a maximum recurrent reverse voltage of 40 volts and a peak forward current rating of 3 amperes, the 1N5637 Series offers a reliable solution for applications that demand both durability and performance.

One of the key features of the 1N5637 Series is its low forward voltage drop, which minimizes power loss and enhances energy efficiency. This characteristic is critical in applications where thermal management is a concern, as it reduces the heat generated during operation. The series also boasts a high surge current capability, providing added resilience against transient voltage spikes, which is essential in protecting sensitive electronic components.

Designed with versatility in mind, the 1N5637 Series is housed in a DO-41 package, ensuring ease of integration into various circuit designs. The package's robust construction provides excellent thermal dissipation, enabling the diodes to operate efficiently even in high-temperature environments. This makes the series particularly suitable for industrial applications, automotive electronics, and consumer products that require reliable rectification under challenging conditions.

Typical applications for the 1N5637 Series include power supply circuits, where they serve as essential components for converting AC to DC voltage. Their reliability makes them ideal for use in home appliances, electronic devices, and renewable energy systems such as solar inverters. Additionally, the diodes are well-suited for use in automotive applications, where their ability to withstand high temperatures and electrical stress is crucial for ensuring longevity and reliability.

In summary, the 1N5637 Series stands out as a dependable choice for engineers and designers seeking high-performance rectifier solutions across a multitude of industries. Its combination of efficiency, thermal stability, and robust package design makes it an indispensable component in modern electronics.

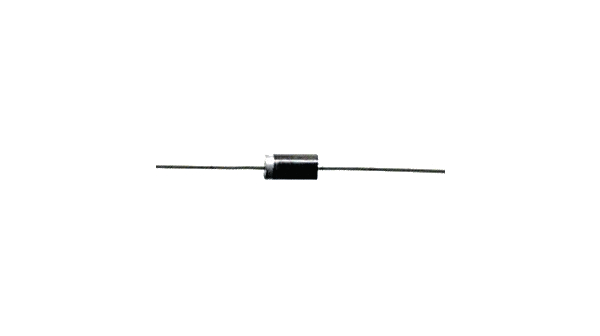

Images for reference

Image Preview

Image Preview

Image Preview

Image Preview

Image Preview

Image Preview

Datasheets

Partlist

1N5637
1N5637A
1N5637AJANTX
1N5637AJANTXV
