1N5280
190V 500mW Zener diodes in DO-35 package
Manufacturer： ['microsemi', 'taiwan-semiconductor']
series introduction
The 1N5280 Series is a distinguished collection of Zener diodes engineered to provide precise voltage regulation and overvoltage protection in a variety of electronic applications. Known for their robustness and reliability, these diodes deliver a stable Zener voltage across a wide range of currents, making them indispensable in circuits that require accurate voltage references and clamping capabilities. The 1N5280 Series features a diverse array of Zener voltages, allowing engineers and designers to select the ideal component for their specific voltage regulation needs.
Designed to meet the rigorous demands of modern electronics, the 1N5280 Series diodes are constructed using high-quality silicon materials, offering superior thermal stability and performance. The series boasts a maximum power dissipation rating that ensures effective operation even under varying load conditions, making them suitable for both continuous and pulsed applications. Furthermore, the diodes are encapsulated in a DO-41 package, which is designed to withstand high temperatures and harsh environmental conditions, ensuring longevity and reliability in diverse applications.
Ideal for use in power supplies, voltage regulation circuits, and signal processing, the 1N5280 Series is particularly well-suited for automotive electronics, telecommunications, and consumer electronic devices. Their ability to clamp transient voltages effectively protects sensitive components from damage, enhancing the overall reliability of the electronic systems in which they are implemented. Additionally, these Zener diodes find applications in surge protection devices, voltage reference circuits, and as part of voltage divider networks, making them versatile components in both analog and digital circuits.
With their exceptional performance characteristics and broad application potential, the 1N5280 Series Zener diodes stand out as a reliable choice for engineers and designers looking to enhance circuit performance and protect valuable electronic components. Whether in consumer products, industrial machinery, or automotive systems, the 1N5280 Series ensures that voltage regulation and protection are achieved with precision and reliability.

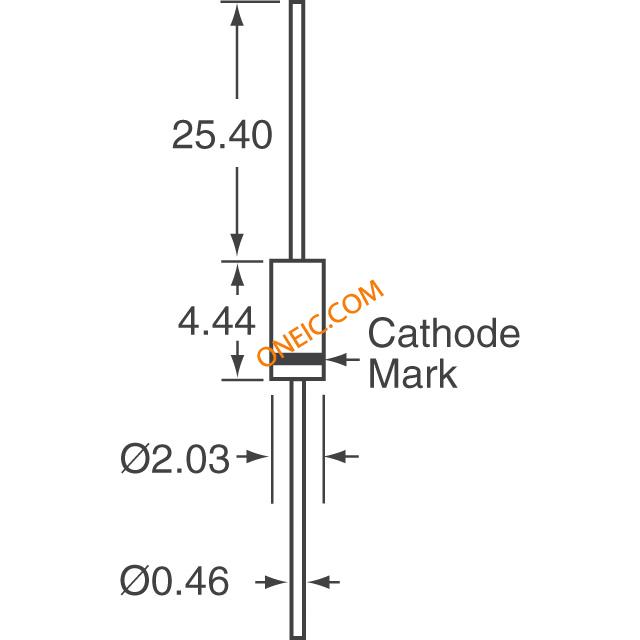

Images for reference
1N5233BDO35
1N52 Series Side
Image Preview
