1N5234B-T
Zener diodes, 6.2V, 500mW, DO-35
Manufacturer： ['diodes-zetex', 'micro-commerical-co', 'siliconix', 'diodes', 'mcc', 'vishay', 'rectron']
series introduction
The 1N5234B-T Series is a comprehensive line of Zener diodes designed for voltage regulation and reference applications, renowned for their stability, precision, and robustness. This series features a wide range of Zener breakdown voltages, typically spanning from 3.3V to 75V, providing engineers with versatile options to meet specific circuit requirements. With a maximum power rating of 1W, the 1N5234B-T Series is well-suited for both low and medium power applications, ensuring reliable performance in a variety of electronic systems.
One of the standout features of the 1N5234B-T Series is its excellent thermal stability, achieved through advanced semiconductor materials and design. These diodes exhibit a minimal change in Zener voltage over temperature, typically specified at -0.1 mV/°C to +0.1 mV/°C, making them ideal for precision voltage regulation tasks in environments subject to temperature fluctuations. Additionally, the low dynamic impedance characteristic of the series enhances its performance in maintaining a constant voltage under varying load conditions.
The design of the 1N5234B-T Series incorporates a robust glass package that provides excellent protection against moisture and mechanical stress, making these diodes suitable for both surface mount and through-hole applications. Their compact form factor ensures efficient space utilization on circuit boards, particularly in high-density designs often found in consumer electronics and telecommunications equipment.
Typical applications for the 1N5234B-T Series include voltage regulation in power supplies, reference voltage sources in analog circuits, and overvoltage protection in sensitive components. These diodes are widely utilized in the automotive sector for voltage clamping, as well as in industrial automation systems where reliable voltage references are essential. With their combination of reliability, precision, and versatility, the 1N5234B-T Series stands as an excellent choice for engineers seeking effective solutions for voltage management in a diverse range of electronic applications.
Images for reference

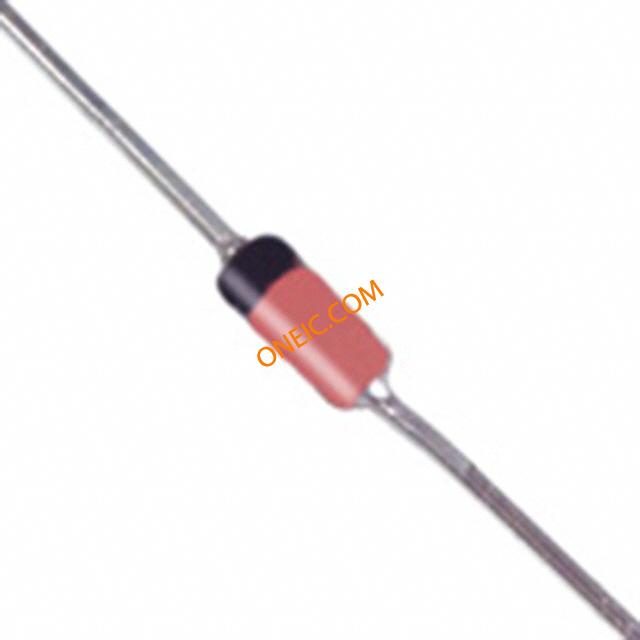

31-DO-35
DO35
DB3-TP
