1N4936GP-E3
1A 400V switching diodes in DO-204AL
Manufacturer： ['vishay-general-semiconductor', 'vishay']
series introduction
The 1N4936GP-E3 Series is a highly efficient family of glass-passivated rectifier diodes designed for a wide array of power management applications. Renowned for their exceptional performance characteristics, these diodes are specifically engineered to handle high surge currents and boast a reverse voltage rating of up to 40V, making them suitable for various demanding environments. With a maximum forward current rating of 1A, the 1N4936GP-E3 Series ensures reliable rectification in both commercial and industrial applications.
One of the key features of the 1N4936GP-E3 Series is its robust construction, which incorporates a glass passivation layer that enhances electrical performance while providing protection against environmental factors. This design characteristic not only improves the thermal stability of the diode but also contributes to its overall longevity. The diodes exhibit a low forward voltage drop, which translates to higher efficiency and reduced power loss, making them an ideal choice for energy-sensitive applications.
The versatility of the 1N4936GP-E3 Series allows for its integration into a diverse range of use cases. These diodes are particularly well-suited for applications such as power supplies, motor drives, and battery chargers, where reliable and efficient rectification is crucial. Additionally, their ability to withstand high peak reverse voltages makes them an excellent choice for use in circuit protection applications, including snubber circuits and voltage clamping.
In industrial settings, the 1N4936GP-E3 Series is commonly employed in power conversion systems and renewable energy applications, such as solar inverters and wind turbine controllers. Their robust performance under varying conditions ensures that they maintain optimal functionality in both high and low-temperature environments, further solidifying their position as a go-to component for engineers and designers.
Overall, the 1N4936GP-E3 Series combines high performance, reliability, and versatility, making it an essential component for modern electronic designs across a wide spectrum of industries.
Images for reference

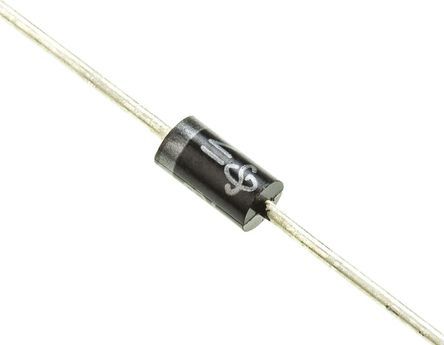

DO-204AL, Axial (DO-41) Bidirectional
Image Preview
Image Preview
