1N4739A-T

Zener diodes, 9.1V, 1 - 1.3W, DO-41

Manufacturer: ['taitron-components', 'micro-commerical-co', 'diodes', 'mcc', 'vishay', 'rectron']

series introduction

The 1N4739A-T Series is a robust line of Zener diodes designed to provide precise voltage regulation and protection in various electronic applications. Renowned for their high reliability and stability, these diodes are ideal for use in both consumer and industrial electronics, where maintaining a consistent voltage level is crucial.

One of the standout features of the 1N4739A-T Series is its wide Zener voltage range, which typically spans from 3.3V to 75V. This versatility allows engineers to select the appropriate component for their specific application requirements, whether for voltage clamping, transient voltage suppression, or reference voltage generation. Additionally, the diodes feature a power dissipation rating of 1W, enabling them to handle significant power levels without compromising performance.

The design characteristics of the 1N4739A-T Series include a glass case construction that provides excellent environmental protection and ensures durability under harsh conditions. With a maximum reverse leakage current of only 100µA at the Zener voltage, these diodes exhibit minimal power loss, enhancing overall circuit efficiency. Furthermore, the series is designed to operate effectively over a wide temperature range, from -55°C to +150°C, ensuring reliable performance in extreme environments.

Suitable use cases for the 1N4739A-T Series include applications in power supplies, voltage regulation circuits, and signal conditioning systems. Their ability to maintain a stable reference voltage makes them an excellent choice for analog circuits, while their fast response time allows for effective transient suppression, protecting sensitive components from voltage spikes.

In the industry, the 1N4739A-T Series is widely utilized in telecommunications, automotive electronics, and consumer devices, where precision and reliability are paramount. Their combination of robust construction, wide voltage range, and exceptional thermal stability makes them an indispensable component for engineers seeking dependable voltage regulation solutions in modern electronic designs.

Images for reference

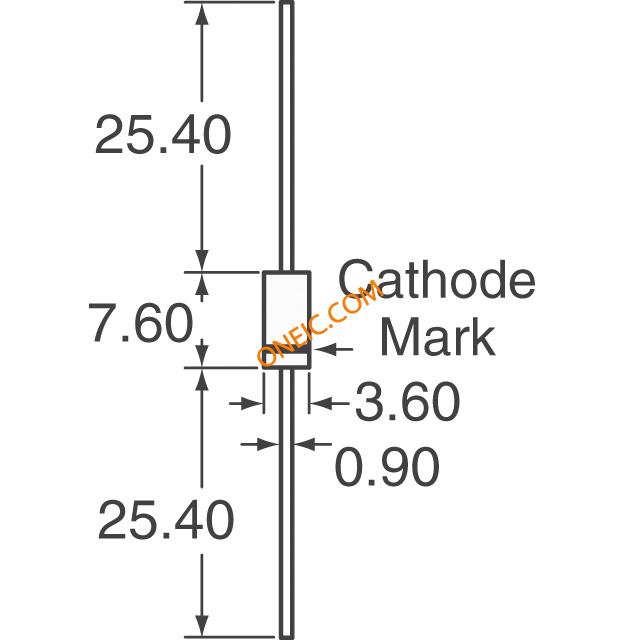

261-DO-41

261-DO-41

2EZ13D5-TP

2EZ13D5-TP

DO-15, DO41G

DO-15, DO41G

Datasheets

Partlist

1N4739A-T
1N4739A-TAP
1N4739A-TP
1N4739A-TR
1N4739A-T/R
