1N4448HWT
SOD-523 switching diodes for various uses
Manufacturer： ['diodes-zetex', 'diodeszetex', 'diodes']
series introduction
The 1N4448HWT Series is a high-performance, surface-mount silicon switching diode family designed to meet the demanding requirements of modern electronic applications. This series is renowned for its fast switching speeds, low reverse leakage current, and robust performance, making it an ideal choice for a variety of electronic circuits. With a maximum repetitive reverse voltage of 100 volts and a forward current rating of 1 ampere, the 1N4448HWT diodes are capable of handling both signal and power applications with ease.
One of the key features of the 1N4448HWT Series is its impressive switching speed, which is typically in the nanoseconds range. This rapid response time is essential for applications such as high-frequency signal processing and pulse circuits, where delays can adversely affect performance. Additionally, the low reverse recovery time minimizes power losses during operation, enhancing overall system efficiency and reliability.
The design of the 1N4448HWT Series incorporates a compact surface-mount package, which facilitates easy integration into space-constrained circuit designs. This feature is particularly beneficial in applications such as consumer electronics, telecommunications, and automotive systems, where a reduction in size without compromising functionality is paramount. The series is also engineered to withstand extreme conditions, with a wide operating temperature range of -55°C to +150°C, making it suitable for both commercial and industrial environments.
Typical applications for the 1N4448HWT Series include rectification in power supplies, protection circuits for sensitive components, signal demodulation, and clamping applications. Its versatility and reliability ensure that it performs well in a variety of roles, from low-power consumer devices to more robust industrial machinery. Overall, the 1N4448HWT Series stands out as a trusted solution for engineers seeking dependable, high-speed diodes for their electronic designs.
Images for reference

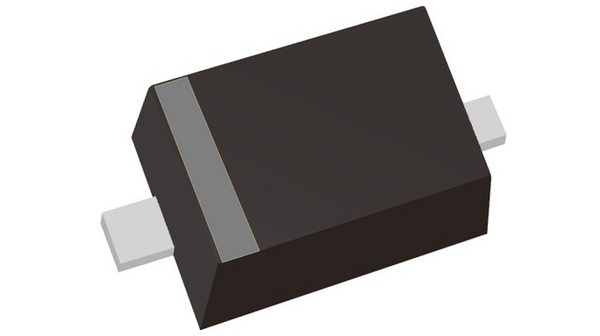

SOD-523
Image Preview
Image Preview
