1N4148-1
Axial DO-35 switching diodes for general use
Manufacturer： microsemi
series introduction
The 1N4148-1 Series is a highly regarded line of general-purpose silicon switching diodes, engineered for versatility and reliability in a wide array of electronic applications. Renowned for their fast switching speed and low reverse recovery time, these diodes are ideal for high-speed switching applications, making them a staple in modern electronic designs. With a maximum repetitive reverse voltage of 100 volts and a forward current rating of 1 ampere, the 1N4148-1 Series is designed to handle both signal and power applications efficiently.
One of the standout features of the 1N4148-1 Series is its robust construction, which allows for dependable performance in various environmental conditions. The diodes are encapsulated in a DO-35 glass package that provides excellent thermal stability and durability, ensuring long operational life even in challenging scenarios. Their low forward voltage drop, typically around 0.7 volts, minimizes power loss, contributing to energy-efficient designs that are crucial in battery-powered devices and energy-sensitive applications.
These diodes excel in numerous use cases, including signal processing, clamping, and switching applications. They are particularly well-suited for use in consumer electronics, telecommunications, and automotive electronics, where reliability and speed are paramount. The 1N4148-1 Series is frequently employed in high-frequency circuits, such as oscillators and amplifiers, as well as in protection circuits to safeguard sensitive components from voltage spikes.
In the industrial sector, their capability to operate in a wide temperature range from -55°C to +150°C makes them ideal for outdoor applications and environments with fluctuating temperatures. The versatility of the 1N4148-1 Series, combined with its excellent electrical characteristics, positions it as a preferred choice among engineers and designers seeking dependable performance in electronic circuits across a diverse range of industries. Whether used for signal rectification, switching, or protection, the 1N4148-1 Series stands out as a reliable solution in the realm of semiconductor diodes.

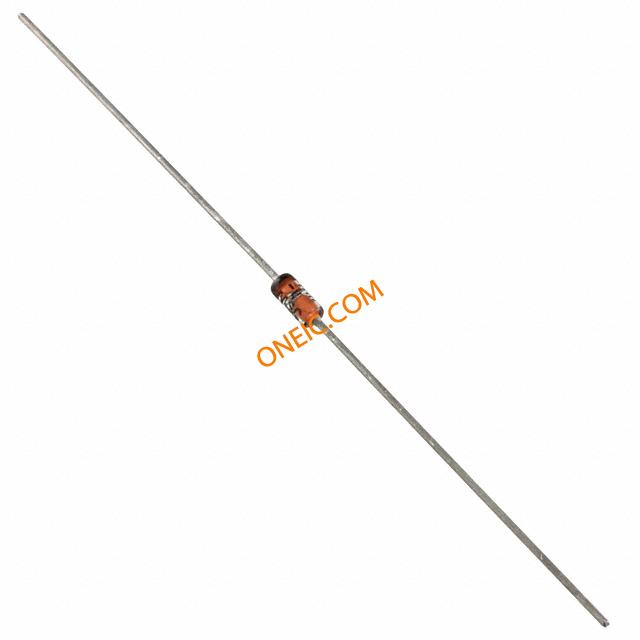

Images for reference
1N4148-1
Image Preview
