1N4131

Zener diodes for voltage regulation

Manufacturer: ['central-semiconductor', 'microsemi']

series introduction

The 1N4131 Series is a collection of standard rectifier diodes renowned for their robust performance and versatility in various electronic applications. Designed to handle moderate power levels, these diodes are crafted to efficiently rectify alternating current (AC) into direct current (DC), making them essential components in power supply circuits, signal processing, and voltage clamping applications.

Key features of the 1N4131 Series include a maximum repetitive reverse voltage of 40 volts, a forward current rating of 1 amp, and a forward voltage drop of approximately 0.7 volts at rated current. This combination of specifications ensures that the diodes can operate effectively in a wide range of conditions while minimizing energy losses. The devices are constructed with a silicon material that provides reliable electrical characteristics, ensuring low leakage current and high surge current capabilities.

The design characteristics of the 1N4131 Series emphasize both thermal and electrical efficiency. They are housed in a DO-41 package, which not only facilitates easy mounting on PCBs but also enhances heat dissipation, thereby improving the longevity of the components. This package design is particularly advantageous in applications requiring high reliability, such as automotive electronics, industrial machinery, and consumer electronics.

Ideal use cases for the 1N4131 Series encompass power rectification in power adapters, battery chargers, and various switching power supply circuits. Additionally, they serve in signal demodulation and protection circuits, safeguarding sensitive components from voltage spikes and transients. Industries such as telecommunications, automotive, and industrial automation frequently utilize these diodes due to their proven performance and reliability.

In summary, the 1N4131 Series offers a blend of efficiency, reliability, and versatility, making it a preferred choice for engineers and designers seeking dependable rectification solutions in a host of electronic applications. Whether in power management, signal processing, or protective circuitry, the 1N4131 Series stands out as a robust solution for modern electronic designs.

Images for reference

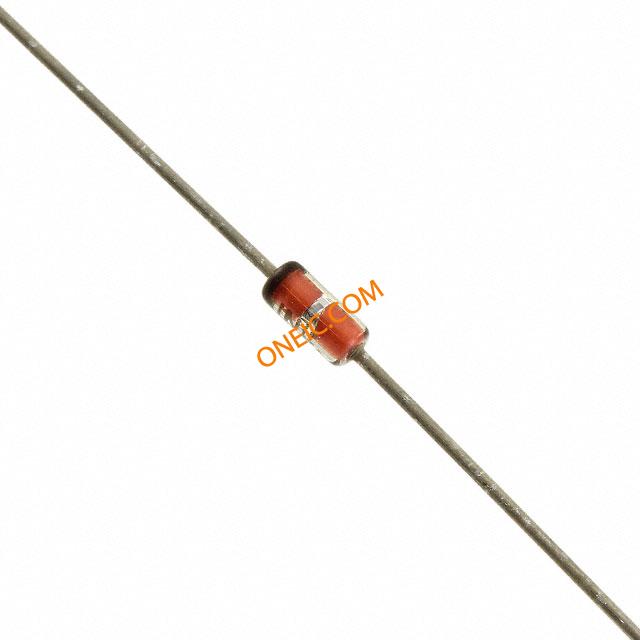

1N4131
