1N4109
15V Zener diodes for voltage regulation
Manufacturer： ['microsemi', 'semelab', 'central-semiconductor']
series introduction
The 1N4109 Series is a renowned line of standard rectifier diodes that are specifically engineered for a broad range of electronic applications. These diodes are characterized by their robust performance, high reliability, and versatility, making them an ideal choice for both commercial and industrial uses. With a maximum repetitive reverse voltage (V_RRM) of 50 volts and a forward current rating (I_F) of 1 amp, the 1N4109 Series is suitable for applications that require efficient rectification and switching capabilities.
One of the key features of the 1N4109 Series is its glass passivated junction, which enhances reliability and reduces the risk of failure due to environmental factors. This design characteristic allows the diode to withstand high levels of thermal and mechanical stress, making it suitable for challenging applications where durability is essential. Additionally, the diodes in this series exhibit a low forward voltage drop, which minimizes power losses and contributes to overall energy efficiency in circuit designs.
The 1N4109 Series is widely used in power supplies, voltage regulation circuits, and signal rectification. Its typical applications span various industries, including consumer electronics, automotive systems, and renewable energy solutions. For instance, in power supply circuits, the 1N4109 can be utilized for converting alternating current (AC) to direct current (DC), while in automotive applications, it is employed for battery management and protection against reverse polarity.
Furthermore, the 1N4109 Series is designed for ease of integration into printed circuit boards (PCBs), thanks to its axial-lead package style, which facilitates straightforward soldering and assembly processes. This makes it a preferred option for engineers and designers looking to optimize space and simplify manufacturing workflows.
In summary, the 1N4109 Series stands out for its dependable performance, thermal stability, and versatility in various applications. Its capacity to deliver reliable rectification under a range of operating conditions ensures that it remains a favored choice among electronic component designers and manufacturers alike.
Images for reference

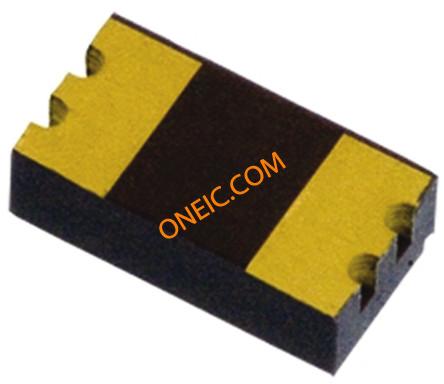

Image Preview
Image Preview
Image Preview
