1N4005GP-E3
600V 1A diodes in DO-204AL form factor
Manufacturer： ['vishay-general-semiconductor', 'vishay']
series introduction
The 1N4005GP-E3 Series is a renowned line of general-purpose rectifier diodes, engineered to provide reliable performance in a wide range of electronic applications. These diodes are particularly valued for their robust design and excellent electrical characteristics, making them ideal for both industrial and consumer electronics. With a peak reverse voltage of 600V and a forward current rating of 1A, the 1N4005GP-E3 Series offers a versatile solution for various power conversion needs.
One of the key features of the 1N4005GP-E3 Series is its high surge current capability, which ensures that it can withstand sudden spikes in current without compromising performance. This is crucial in circuits where unpredictable load conditions can occur, such as in power supplies and motor control applications. Additionally, the series exhibits low forward voltage drop, which enhances energy efficiency by minimizing power losses during operation. The diodes are constructed with a glass passivated junction, providing improved reliability and stability, even in harsh environments.
The design of the 1N4005GP-E3 Series emphasizes thermal efficiency, featuring a wide operating temperature range from -55°C to +150°C. This allows for deployment in a variety of environments, from consumer electronic devices to heavy-duty industrial machinery. The package type is standard DO-41, facilitating easy integration into circuit boards and making it compatible with automated assembly processes.
Typical applications for the 1N4005GP-E3 Series include power supplies, battery chargers, and low-frequency converters, where they function as rectifiers to convert alternating current (AC) to direct current (DC). They are also commonly found in voltage regulation circuits, signal demodulation, and various other electronic systems requiring robust and reliable rectification. The series' combination of performance, reliability, and ease of use makes it a preferred choice among engineers and designers looking for effective solutions in their electronic designs.
Images for reference

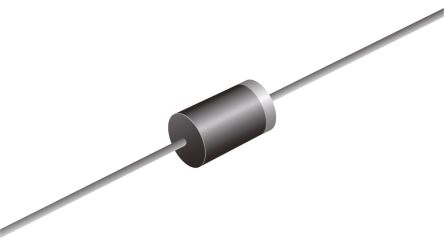

DO-204AL, Axial (DO-41) Bidirectional
Image Preview
Image Preview
