Standard 1A 400V diodes in DO-204AL form
Manufacturer: ['vishay-general-semiconductor', 'vishay']
The 1N4004-E3 Series is a family of standard recovery rectifier diodes renowned for their robust performance and versatility in a wide range of electronic applications. Designed to handle moderate power levels, these diodes are characterized by their ability to efficiently convert alternating current (AC) to direct current (DC), making them an essential component in power supply circuits, battery chargers, and various other electronic devices.
One of the key features of the 1N4004-E3 Series is its peak reverse voltage rating of 400 volts, which provides ample headroom for most low to medium voltage applications. This high voltage tolerance, combined with a forward current rating of 1 ampere, allows them to effectively manage power in systems that require reliable rectification under varying load conditions. The diodes exhibit a low forward voltage drop, typically around 0.5 volts, ensuring minimal power loss and improved efficiency, an essential factor in energy-sensitive applications.
The design of the 1N4004-E3 Series reflects an emphasis on durability and thermal stability. They are constructed with a glass passivated junction, which enhances their resistance to environmental stressors, including moisture and contaminants. This makes them suitable for use in both consumer electronics and industrial environments. Furthermore, the diodes are packaged in a DO-41 form factor, allowing for straightforward integration into PCB layouts while maintaining excellent thermal dissipation characteristics.
Typical applications for the 1N4004-E3 Series include AC to DC conversion in power supplies, reverse polarity protection in various electronic circuits, and as part of rectifier bridge configurations in larger systems. They find extensive use in home appliances, automotive electronics, and industrial machinery, where reliability and performance are paramount.
Overall, the 1N4004-E3 Series diodes exemplify a balance of high-performance specifications, robust design, and versatility, making them a staple in the toolkit of engineers and designers looking to optimize their electronic systems.

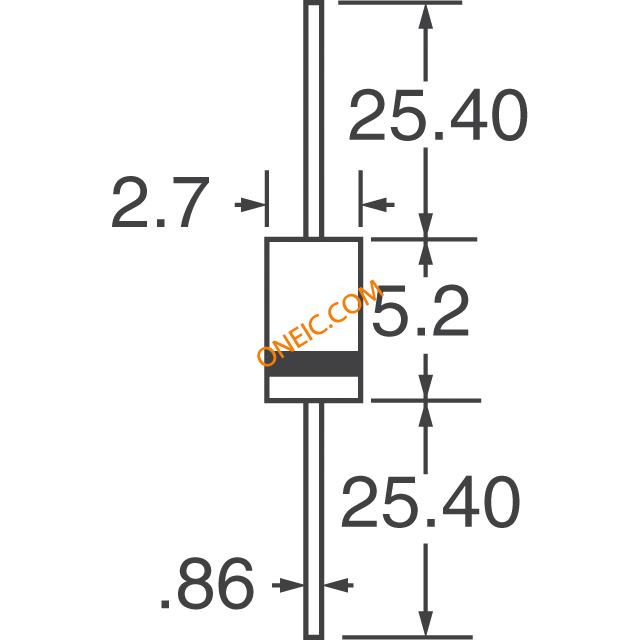

DO-204AL, Axial (DO-41) Bidirectional
DO-41(DO-204AL) Front
