1N4002GP-E3
1A 100V diode in DO-204AL form factor
Manufacturer： ['vishay-general-semiconductor', 'vishay']
series introduction
The 1N4002GP-E3 Series is a renowned line of general-purpose rectifier diodes, specifically engineered to address the demands of various electronic applications. These diodes are recognized for their robust performance, reliability, and versatility, making them an essential component in power management systems. With a peak reverse voltage rating of 40 volts and a forward current capacity of up to 1 ampere, the 1N4002GP-E3 Series is well-suited for a wide array of applications, from simple rectification tasks to more complex circuits requiring efficient power conversion.
One of the key features of the 1N4002GP-E3 Series is its impressive surge current handling capability, which allows it to withstand sudden spikes in current without compromising performance. This is particularly beneficial in applications where load conditions can fluctuate rapidly, such as power supplies and motor control circuits. Additionally, the diodes exhibit a low forward voltage drop, ensuring minimal energy loss during operation, which translates into improved efficiency, especially in battery-operated and energy-sensitive devices.
The design characteristics of the 1N4002GP-E3 Series include a glass passivated junction, providing enhanced reliability and stability in various environmental conditions. With a standard DO-41 package, these diodes are easily integrated into both through-hole and surface-mount designs, accommodating diverse PCB layouts. The diodes are also rated for wide temperature ranges, allowing them to function effectively in environments that may experience extreme conditions.
Typical applications of the 1N4002GP-E3 Series span across consumer electronics, automotive electronics, industrial machinery, and telecommunications. Whether utilized in power adapters, LED drivers, or signal processing circuits, these rectifier diodes deliver dependable performance, contributing to the longevity and operational efficiency of electronic devices. In summary, the 1N4002GP-E3 Series stands out as a reliable and versatile choice for engineers and designers seeking high-quality rectification solutions in their projects.
Images for reference

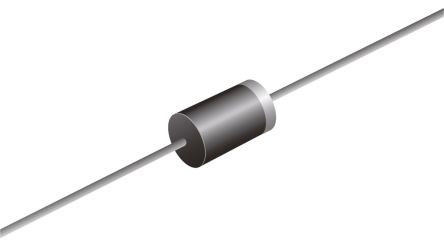

DO-204AL, Axial (DO-41) Bidirectional
Image Preview
Image Preview
