1812PC184

Multilayer ceramic capacitors for SMD/SMT applications

Manufacturer: avx

series introduction

The 1812PC184 Series is an advanced line of surface-mount ceramic capacitors designed for high-performance applications that require exceptional stability and reliability. These capacitors are constructed using a high-quality dielectric material, ensuring minimal capacitance variation across a broad range of operating conditions. With a capacitance value of 0.18 µF and a voltage rating that supports various circuit designs, the 1812PC184 Series is particularly well-suited for critical applications in telecommunications, automotive systems, and industrial electronics.

One of the standout features of the 1812PC184 Series is its robust temperature coefficient, allowing it to maintain a stable capacitance across a temperature range of -55°C to +125°C. This characteristic is essential for applications that experience fluctuating environmental conditions, ensuring that the capacitors deliver consistent performance even under extreme temperatures. Additionally, the 1812 package size (4.5 mm x 3.2 mm) provides a compact footprint, making these capacitors an excellent choice for space-constrained designs without compromising on performance.

The design of the 1812PC184 Series emphasizes not only electrical performance but also mechanical robustness. These capacitors are built to withstand the rigors of reflow soldering processes and are compatible with a range of PCB assemblies. Their surface-mount technology (SMT) integration facilitates easy installation and enhances manufacturing efficiency, making them a preferred choice for modern electronic devices.

Typical applications for the 1812PC184 Series include power supply decoupling, signal coupling, and filtering in high-frequency circuits. Their reliability and performance make them suitable for use in critical systems such as automotive electronics, where consistent operation is paramount. Additionally, they find utility in consumer electronics, medical devices, and industrial automation systems, reinforcing their versatility across various sectors.

In summary, the 1812PC184 Series combines compact design, robust performance, and high reliability, making it an ideal choice for engineers looking to optimize their electronic designs while ensuring long-term stability and efficiency.

Images for reference

Ceramic 1812

Ceramic 1812

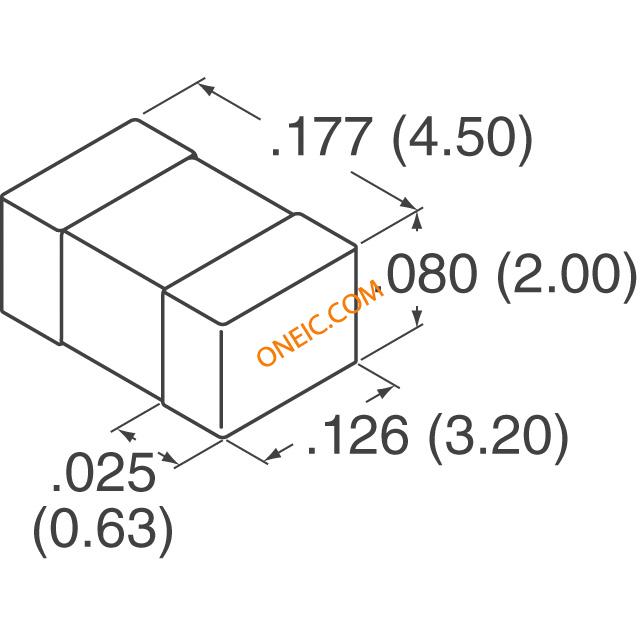

KAT1A_1812

KAT1A_1812

Image Preview

Image Preview

Datasheets

Partlist

1812PC184KAT
1812PC184KAT1A
1812PC184KAT2A
1812PC184KAT3A
1812PC184KAT9A
