18123C105

Multilayer ceramic capacitors for 25V 1uF applications

Manufacturer: avx

series introduction

The 18123C105 Series is a cutting-edge line of high-performance multilayer ceramic capacitors (MLCCs) tailored for demanding electronic applications. Renowned for their robust reliability and exceptional electrical characteristics, these capacitors are constructed using advanced dielectric materials that ensure stable capacitance values across a wide range of operating conditions. Specifically, the 18123C105 Series utilizes a C0G (NP0) dielectric, which provides a remarkable capacitance stability within ±5% over a temperature range of -55°C to +125°C, making them ideal for high-precision applications.

Designed with a compact layout, the 18123C105 Series features a standard 1812 package size (4.5 mm x 3.2 mm) that strikes an optimal balance between size and performance. This form factor is particularly advantageous for modern electronic designs that prioritize space-saving solutions without compromising on performance. The series is available in various capacitance values and voltage ratings, catering to a broad spectrum of requirements in various applications, ranging from consumer electronics to industrial systems.

The key features of the 18123C105 Series include low equivalent series resistance (ESR) and low equivalent series inductance (ESL), which enhance the capacitors' ability to perform effectively in high-frequency applications. Additionally, their excellent temperature and voltage coefficients provide superior reliability, making them suitable for critical applications in automotive electronics, telecommunications, and medical devices.

Typical use cases for the 18123C105 Series encompass decoupling, filtering, and timing circuits, where precision and stability are paramount. They are extensively employed in power management systems, signal integrity applications, and RF circuits, ensuring that electronic devices operate efficiently and reliably under various conditions. With their combination of compact design, high performance, and versatile applications, the 18123C105 Series is an indispensable choice for engineers and designers seeking to elevate the reliability and efficiency of their electronic systems.

Images for reference

Ceramic 1812

Ceramic 1812

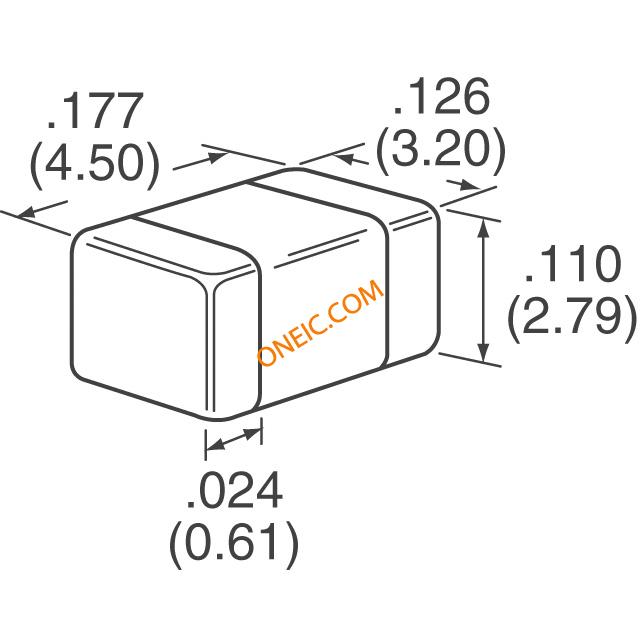

Z2A_1812_2.79

Z2A_1812_2.79

Z2A_1812_2.79

Z2A_1812_2.79

Datasheets

Partlist

18123C105KA76A
18123C105KAT2A
18123C105KAT4A
18123C105KAZ2A
18123C105KBT1A
18123C105M4T2A
18123C105MAT2A
18123C105MAT4A
