18121C225

SMD multilayer ceramic capacitors, 2.2uF 100V X7R

Manufacturer: avx

series introduction

The 18121C225 Series is a distinguished line of multilayer ceramic capacitors (MLCCs) engineered for high-performance applications where reliability and compactness are paramount. These capacitors utilize advanced C0G (NP0) dielectric material, which provides exceptional temperature stability and low voltage coefficients. With capacitance values that typically range from 1 nF to 2.2 µF and voltage ratings up to 50 V, the 18121C225 Series is optimized for applications that demand precise capacitance with minimal drift over a broad temperature range of -55°C to +125°C.

One of the standout features of the 18121C225 Series is its robust design, which includes a small 1812 package size (4.5 mm x 3.2 mm). This compact footprint makes it ideal for space-constrained applications, allowing engineers to maximize board density without compromising performance. The series boasts a low equivalent series resistance (ESR) and a low equivalent series inductance (ESL), making it particularly effective in high-frequency applications, such as RF circuits and power supply decoupling.

The 18121C225 Series is well-suited for a variety of use cases across multiple industries. In consumer electronics, these capacitors are frequently used in smartphones, tablets, and laptops, where efficient power management and signal integrity are critical. Additionally, their reliability makes them suitable for automotive applications, including electronic control units (ECUs) and advanced driver-assistance systems (ADAS), where environmental conditions can be harsh and unpredictable. Furthermore, the 18121C225 Series finds applications in industrial automation systems, medical devices, and telecommunications equipment, where consistent performance over time is essential.

Overall, the 18121C225 Series exemplifies a commitment to quality and innovation in capacitor design, catering to the evolving needs of modern electronic systems. By combining exceptional electrical performance with a compact form factor, this series provides engineers with the reliability and flexibility required for today’s demanding applications.

Images for reference

Ceramic 1812

Ceramic 1812

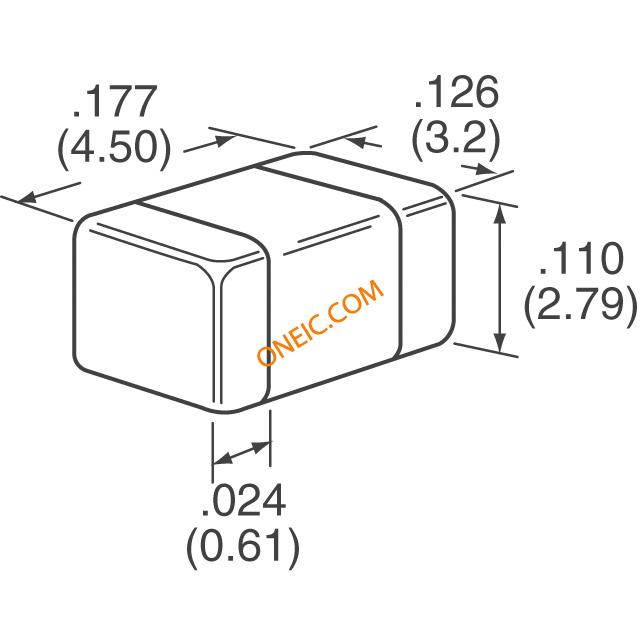

AT2A_1812_2.79

AT2A_1812_2.79

AT2A_1812_2.79

AT2A_1812_2.79

Datasheets

Partlist

18121C225JAT2A
18121C225K4T2A
18121C225K4Z2A
18121C225KAT2A
18121C225KAT9A
18121C225KAZ2A
18121C225KAZ9A
18121C225M4T2A
18121C225M4Z2A
18121C225MAT2A
18121C225MAZ2A
18121C225MAZ9A
