15KP120C

TVS diodes for voltage suppression at 120V

Manufacturer: ['microsemi', 'littelfuse', 'micro-commerical-co']

series introduction

The 15KP120C Series is a robust line of transient voltage suppression (TVS) diodes designed to provide superior protection for sensitive electronic components against voltage spikes and transients. These devices are engineered to achieve a high level of clamping performance, making them ideal for safeguarding circuits in a variety of applications. The 15KP120C Series features a breakdown voltage of 120V, ensuring that they effectively clamp high-voltage transients while allowing normal operating voltages to pass through without interruption.

One of the standout characteristics of the 15KP120C Series is its impressive power handling capability, with a peak pulse power rating of up to 15,000 watts. This makes the series particularly suitable for high-energy environments, where sudden voltage surges can occur, such as in automotive electronics, telecommunications equipment, and industrial machinery. The diodes are constructed using advanced silicon technology, which contributes to their fast response time and low clamping voltage, thereby enhancing the overall reliability of the circuits they protect.

In terms of design, the 15KP120C Series is housed in a DO-15 package, allowing for easy integration into PCBs (printed circuit boards) while minimizing the impact on board space. The series is designed to operate in a wide temperature range, from -55°C to +150°C, making it capable of withstanding harsh environmental conditions. This versatility ensures that the 15KP120C diodes can be utilized across various industries, including consumer electronics, automotive systems, and industrial control applications.

The applications for the 15KP120C Series are vast, ranging from protection of sensitive microcontrollers and communication lines to safeguarding power supply circuits from voltage spikes. Its reliability and efficiency make it a preferred choice for engineers looking to enhance the durability and longevity of their electronic devices in environments prone to electrical noise and surges. Overall, the 15KP120C Series stands out as a critical component for any design requiring effective transient voltage protection.

Images for reference

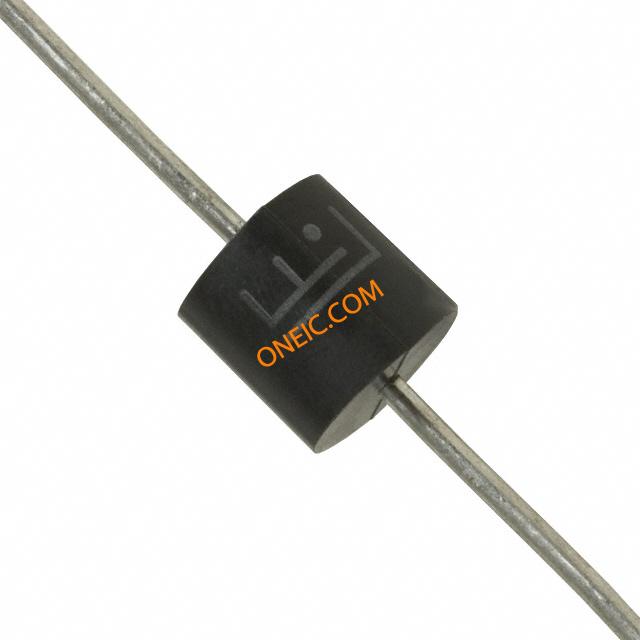

5KP,15KP Axial Series

5KP,15KP Axial Series

15KP200CA-TP

15KP200CA-TP

related Documents

Datasheets

Partlist

15KP120C
15KP120CA
15KP120CAE3/TR12
15KP120CAE3/TR8
15KP120CA-TP
15KP120CA/TR12
15KP120CA/TR8
15KP120CE3/TR12
15KP120CE3/TR8
15KP120C/TR12
15KP120C/TR8
