134D686X

Tantalum capacitors with various voltages and sizes

Manufacturer: ['sprague', 'vishay']

series introduction

The 134D686X Series is a premium line of tantalum capacitors engineered for high-performance applications across a variety of industries. These capacitors are notable for their robust construction, outstanding reliability, and exceptional capacitance-to-volume ratio, making them an ideal choice for applications requiring compact yet efficient power management solutions.

Featuring a wide range of capacitance values and voltage ratings, the 134D686X Series is designed to deliver stable performance even in challenging environments. With a capacitance range that extends up to 68 µF and voltage ratings that span from 6.3 V to 50 V, these capacitors are particularly effective in smoothing, filtering, and decoupling applications within power supply circuits. The tantalum dielectric material used in the construction of these capacitors provides a stable capacitance with minimal variation over time and temperature, ensuring consistent performance in critical applications.

One of the key design characteristics of the 134D686X Series is its enhanced thermal stability. These capacitors maintain their electrical performance across a wide temperature range, making them suitable for use in automotive electronics, telecommunications, and industrial control systems where temperature fluctuations are common. In addition, the capacitors are available in a variety of case sizes to accommodate different designs and space constraints, further adding to their versatility.

Typical applications for the 134D686X Series include power management in portable devices, energy storage in renewable energy systems, and filtering in audio equipment. Their reliability and compact size make them a favored choice in mobile devices, medical equipment, and aerospace applications, where performance and durability are paramount. By providing a combination of high capacitance, reliability, and design flexibility, the 134D686X Series stands out as an exemplary solution for engineers seeking to optimize their electronic designs while ensuring long-term performance.

Images for reference

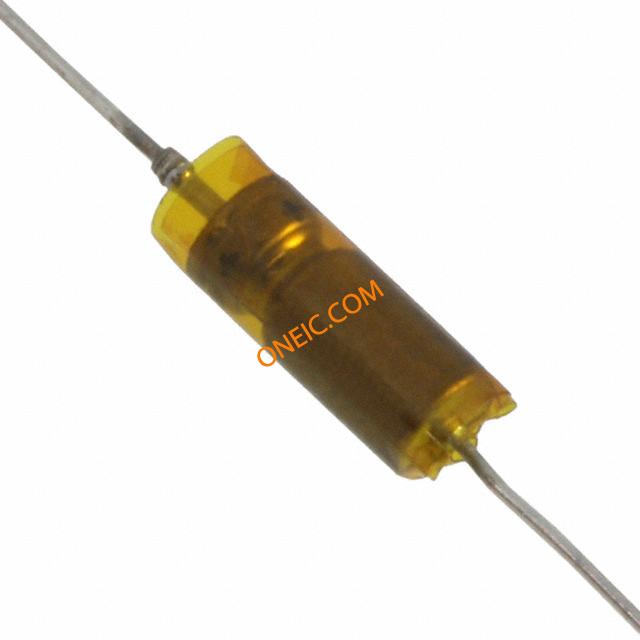

HI TMP134D5 SERIES

HI TMP134D5 SERIES

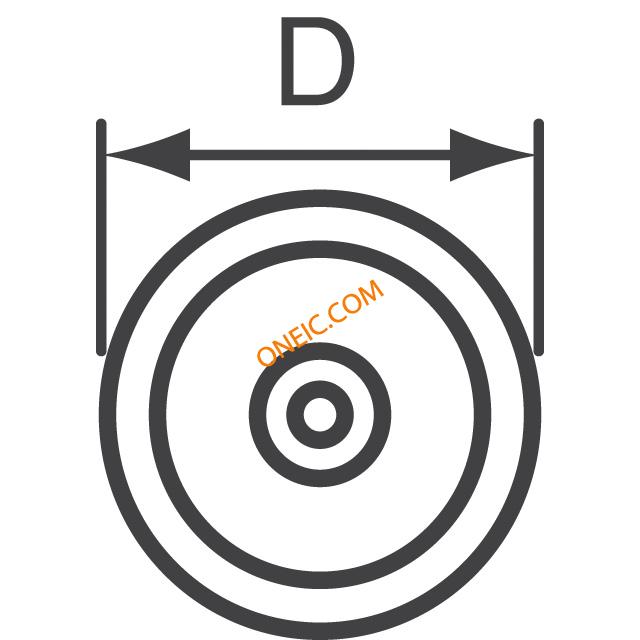

134D Series Side 2

134D Series Side 2

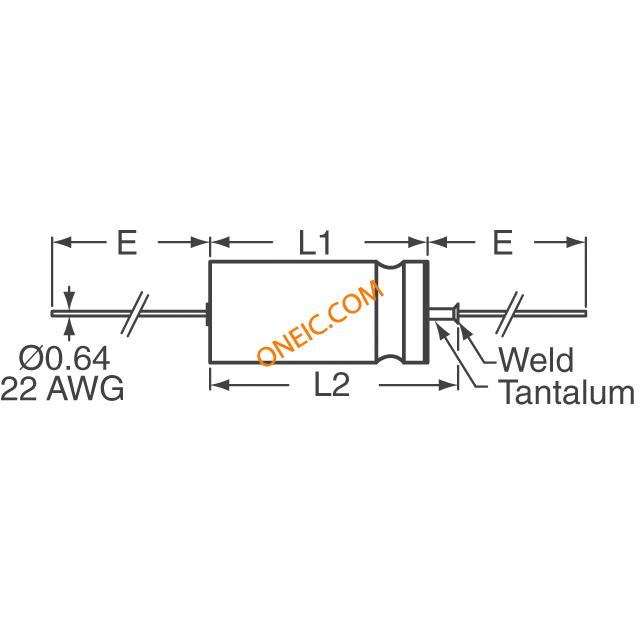

134D Series Side 1

134D Series Side 1

Datasheets

Partlist

134D686X0050C6
134D686X0050C6E3
134D686X0100F6
134D686X0100F6E3
134D686X0100F8E3
134D686X9050C6
134D686X9050C6E3
134D686X9050C8E3
134D686X9100F6
