1210ZG

SMD multilayer ceramic capacitors in 1210 package

Manufacturer: avx

series introduction

The 1210ZG Series is a premier line of surface-mount multilayer ceramic capacitors (MLCCs) engineered to meet the demands of modern electronic applications. Known for their robust performance, these capacitors utilize advanced X7R dielectric material, which provides enhanced capacitance stability of ±15% across an extensive temperature range of -55°C to +125°C. This temperature resilience makes the 1210ZG Series exceptionally reliable in environments where thermal fluctuations are common, ensuring consistent performance even under challenging conditions.

The design of the 1210ZG Series reflects a commitment to both efficiency and compactness. With a standard package size of 3.2 mm x 2.5 mm, these capacitors are meticulously constructed to maximize surface area while minimizing footprint, making them particularly well-suited for high-density circuit board layouts. Their versatility in capacitance values and voltage ratings allows for a wide range of applications, making them ideal for decoupling, filtering, and energy storage tasks in various electronic systems.

These capacitors excel in applications across multiple industries, including consumer electronics, automotive, telecommunications, and industrial equipment. In the consumer electronics sector, the 1210ZG Series can be found in smartphones, tablets, and wearables, where space is at a premium, yet higher performance is crucial. In automotive applications, they play a critical role in power management systems, ensuring stable operation of electronic control units (ECUs) under fluctuating environmental conditions. Furthermore, in telecommunications, the 1210ZG Series is instrumental in ensuring signal integrity and power stability in RF and data communication systems.

In conclusion, the 1210ZG Series represents a perfect blend of reliability, performance, and compact design, making it an essential component in today’s diverse electronic landscape. Its robust characteristics and wide applicability ensure that it meets the rigorous demands of both current and future technology developments.

Images for reference

Ceramic 1210 Series

Ceramic 1210 Series

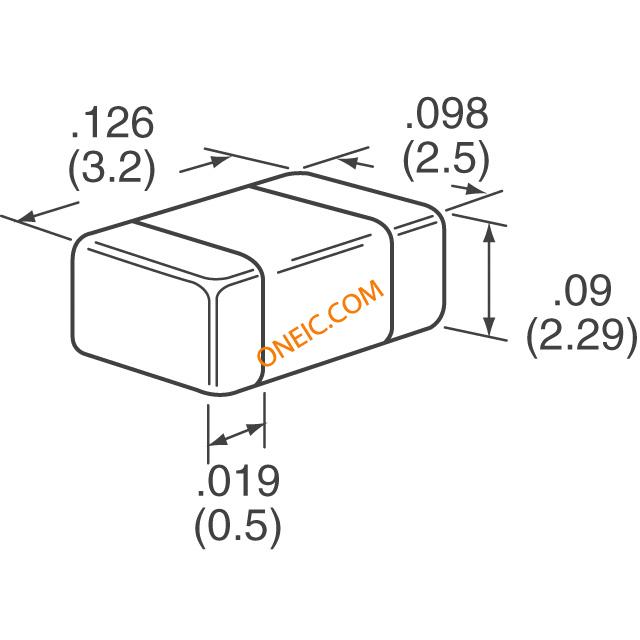

AT2A_1210_2.29

AT2A_1210_2.29

AT2A_1210_2.29

AT2A_1210_2.29

Datasheets

Partlist

1210ZG105ZAT2A
1210ZG106KAT2A
1210ZG106ZAT2A
1210ZG106ZAT4A
1210ZG155ZAT2A
1210ZG156ZAT2A
1210ZG225ZAT2A
1210ZG226ZAT1A
1210ZG226ZAT2
1210ZG226ZAT2A
1210ZG226ZAT4A
1210ZG475ZAT2A
