1210YG106

SMD 1210 16V Y5V 10uF ceramic capacitors

Manufacturer: avx

series introduction

The 1210YG106 Series is a distinguished line of surface-mount ceramic capacitors, specifically engineered to meet the demands of modern electronic applications. With a package size of 1210 (3.2 mm x 2.5 mm), this series is tailored for applications that require both robust performance and efficient space utilization. The capacitors within the 1210YG106 Series utilize advanced Y5V dielectric materials, which offer a wide capacitance range while maintaining stable performance in various environmental conditions.

One of the key features of the 1210YG106 Series is its remarkable capacitance value, which typically ranges around 10 µF. This makes it ideal for power supply decoupling, signal coupling, and energy storage in electronic circuits. The capacitors are designed to operate effectively within a voltage range that caters to a multitude of applications, providing flexibility for engineers and designers. Additionally, the series exhibits a temperature coefficient that supports performance stability across a broad temperature range, ensuring reliable operation in fluctuating environmental conditions.

The design characteristics of the 1210YG106 Series emphasize reliability and longevity. These capacitors are manufactured to withstand high-frequency operations, making them suitable for high-speed data communication and RF applications. Their low equivalent series resistance (ESR) contributes to reduced power losses, further enhancing their efficiency in power management systems.

In terms of typical applications, the 1210YG106 Series is well-suited for use in consumer electronics, automotive electronics, industrial automation, and telecommunications. They are commonly found in devices such as smartphones, tablets, automotive control systems, and various industrial machinery, where they serve critical roles in ensuring stable voltage levels and minimizing noise interference.

Overall, the 1210YG106 Series stands out for its exceptional performance, compact design, and versatility, making it an ideal choice for engineers seeking reliable solutions in their electronic designs. Whether in consumer products or complex industrial systems, these capacitors deliver the performance required to meet today's stringent electronic demands.

Images for reference

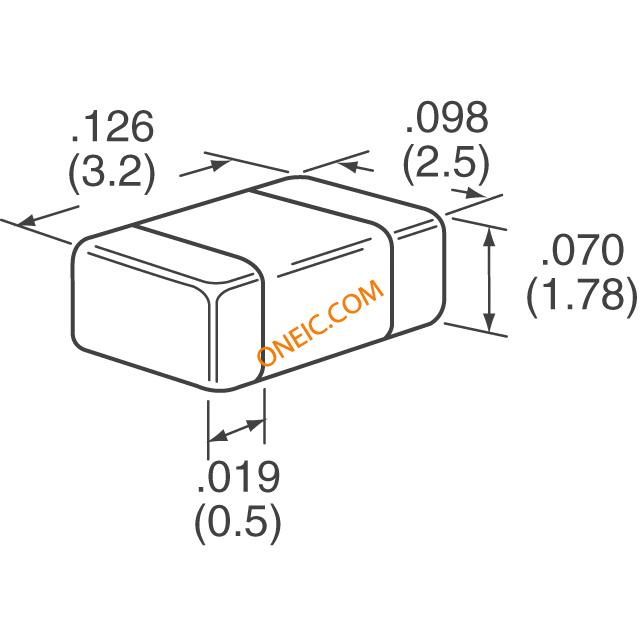

AT2A_1210_1.78

AT2A_1210_1.78

Ceramic 1210 Series

Ceramic 1210 Series

AT2A_1210_1.78

AT2A_1210_1.78

Datasheets

Partlist

1210YG106ZAT1A
1210YG106ZAT2A
1210YG106ZAT2A-
1210YG106ZAT2AK
1210YG106ZAT4A
1210YG106ZAT9A
1210YG106ZAT.I>
1210YG106ZAT.I>
