# Introduction to the 1210CC223KAT2A Product Series

## Overview
The 1210CC223KAT2A product series represents a cutting - edge range of electronic components that have been engineered to meet the diverse and demanding requirements of modern electronic circuits. These components are designed with precision and adhere to the highest industry standards, making them a reliable choice for a wide array of applications.

## Product Naming Convention
Let's break down the product code "1210CC223KAT2A" to understand its key features:
- **1210**: This typically refers to the physical size of the component. In the industry, the 1210 size follows a standard dimension specification. It indicates the length and width of the component, which is crucial for PCB (Printed Circuit Board) layout design. The 1210 size offers a good balance between component density on the board and the ability to handle electrical characteristics.
- **CC**: This may stand for a specific component category or a particular technology used in the manufacturing process. It could imply a certain type of capacitor construction, such as a ceramic capacitor with specific dielectric properties.
- **223**: In the context of capacitors, this is a common way to represent the capacitance value. Using the multiplier rule, the first two digits (22) are the significant figures, and the third digit (3) is the multiplier. So, 223 means \(22\times10^{3}\) picofarads, which is equivalent to 22,000 picofarads or 0.022 microfarads.
- **K**: This letter represents the tolerance of the component. In the case of capacitors, a "K" indicates a tolerance of ±10%. This means that the actual capacitance value of the component can vary by up to 10% from the nominal value of 0.022 microfarads.
- **AT2A**: This part of the code is likely a manufacturer - specific identifier. It could denote a particular series within the product line, specific manufacturing batch, or additional features such as a special coating, packaging option, or enhanced performance characteristics.

## Electrical Characteristics
### Capacitance
As mentioned earlier, the nominal capacitance of the 1210CC223KAT2A series is 0.022 microfarads. This capacitance value is carefully calibrated during the manufacturing process to ensure consistent performance across different units. The capacitance is an important parameter as it determines the ability of the capacitor to store electrical charge. In circuits, it can be used for functions such as filtering, coupling, and decoupling.

### Tolerance
With a ±10% tolerance, the actual capacitance of the components in this series can range from 0.0198 microfarads (22,000 pF - 10%) to 0.0242 microfarads (22,000 pF+ 10%). This tolerance range is acceptable for many general - purpose applications. However, for more precision - critical circuits, additional screening or selection of components with tighter tolerances may be required.

### Voltage Rating
The 1210CC223KAT2A series is designed to handle a specific voltage rating. This voltage rating indicates the maximum voltage that the capacitor can safely withstand without experiencing breakdown or other electrical failures. The exact voltage rating is determined by the manufacturer based on the materials and construction of the capacitor. It is important to select a capacitor with a voltage rating that is higher than the maximum voltage expected in the circuit to ensure reliable operation.

### Dielectric Properties
If the "CC" in the product code indicates a ceramic capacitor, the dielectric material used

Images for reference

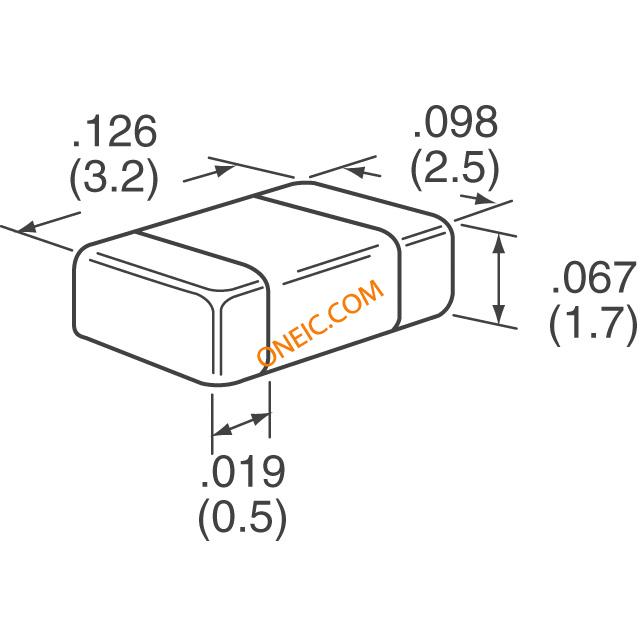

AT2A_1210_1.7
