1.5SMC39A-E
Vishay 1500W unidirectional TVS diodes
Manufacturer： ['vishay-general-semiconductor', 'vishay']
series introduction
The 1.5SMC39A-E Series is a robust line of surface-mount transient voltage suppression (TVS) diodes designed to safeguard sensitive electronic components from voltage spikes and surges. Engineered for high reliability and superior performance, this series is particularly suited for applications requiring robust protection against electrostatic discharge (ESD) and other transient overvoltage events. The 1.5SMC39A-E Series features a peak power rating of 1,500 watts and a working voltage of 39V, making it an excellent choice for protecting a wide range of devices in various environments.
One of the standout characteristics of the 1.5SMC39A-E Series is its low clamping voltage, which ensures that the voltage seen by sensitive components remains within safe limits during a surge event. This feature is critical for maintaining the integrity of circuit boards in high-frequency applications, where even minor voltage fluctuations can lead to significant operational issues. The diodes in this series are built with a unidirectional configuration, suitable for a variety of AC and DC applications, ensuring versatility in usage.
The design of the 1.5SMC39A-E Series emphasizes both thermal and electrical performance, with a low thermal resistance that allows for efficient dissipation of heat during operation. This attribute is particularly beneficial in high-density electronic assemblies where space and thermal management are paramount. The series is housed in a DO-214AA package, which facilitates easy integration into circuit designs while providing excellent mechanical protection.
Typical applications for the 1.5SMC39A-E Series include consumer electronics, telecommunications equipment, automotive electronics, and industrial automation systems. In these sectors, the diodes serve as essential components in power supplies, data lines, and communication interfaces, ensuring that devices remain operational even under adverse conditions. By incorporating the 1.5SMC39A-E Series into your designs, you can enhance the reliability and durability of your electronic systems while protecting critical components from potentially damaging transient voltages.
Images for reference

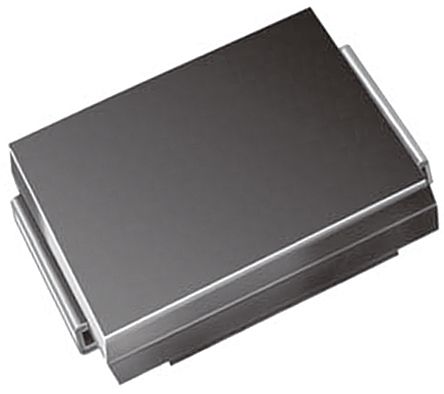

DO-214AB, SMC
Image Preview
Image Preview
