1.5SMC36A-E

TVS diodes for voltage suppression applications

Manufacturer: ['vishay-general-semiconductor', 'vishay']

series introduction

The 1.5SMC36A-E Series is a highly regarded line of transient voltage suppression (TVS) diodes designed to protect sensitive electronic components from voltage spikes and transients. This series is engineered to provide robust protection in various applications, ensuring reliability and longevity in electronic circuits. The 1.5SMC36A-E features a peak pulse power rating of 1500 watts, making it an excellent choice for high-energy transient events while maintaining a low clamping voltage.

One of the key characteristics of the 1.5SMC36A-E Series is its bi-directional design, which allows it to effectively clamp positive and negative voltage transients. This dual-direction capability enhances its effectiveness in protecting circuits that may encounter reverse polarity situations, making it particularly suitable for automotive and industrial applications. The device's low leakage current ensures minimal impact on circuit performance during normal operation, while its fast response time provides immediate protection against voltage transients.

The 1.5SMC36A-E Series is available in a compact DO-214AA (SMC) package, which allows for efficient space utilization on printed circuit boards (PCBs). This compact size, combined with a wide operating temperature range of -55°C to +150°C, makes it versatile for use in various environments, from consumer electronics to harsh industrial settings. The series is particularly well-suited for applications such as power supplies, telecommunications equipment, and automotive electronics, where voltage surges can occur frequently and pose significant risks to component integrity.

In summary, the 1.5SMC36A-E Series offers high-performance transient voltage suppression with bi-directional protection, making it an essential component for safeguarding sensitive electronics. Its robust power handling capabilities, minimal leakage, and compact design make it a preferred choice among engineers seeking reliable surge protection solutions across a wide array of industries.

Images for reference

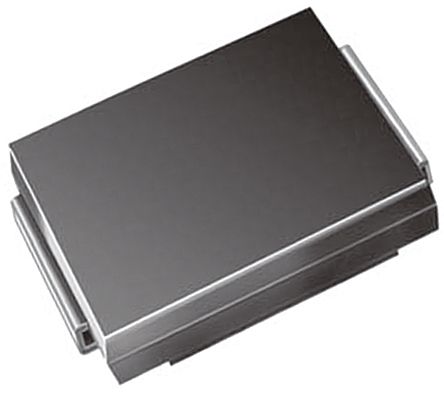

DO-214AB, SMC

DO-214AB, SMC

Image Preview

Image Preview

Image Preview

Image Preview

Datasheets

Partlist

1.5SMC36A-E3/51T
1.5SMC36A-E3/57T
1.5SMC36A-E3/59T
1.5SMC36A-E3/9AT
