1.5SMC24A-E

TVS diodes for transient voltage suppression

Manufacturer: ['vishay-general-semiconductor', 'vishay']

series introduction

The 1.5SMC24A-E Series is a distinguished line of transient voltage suppression (TVS) diodes designed for robust over-voltage protection in a variety of electronic applications. Engineered to safeguard sensitive circuitry from voltage spikes and transients, these diodes are characterized by their high peak pulse power capability of 1500 watts, ensuring reliable performance in critical environments.

A key feature of the 1.5SMC24A-E Series is its low clamping voltage, which minimizes the risk of damage to downstream components during voltage surges. This is achieved through a combination of advanced semiconductor technology and optimal design, enabling these devices to effectively suppress transients while maintaining a fast response time. The series offers a breakdown voltage of 24 volts, making it ideal for protecting various low-voltage electronic systems from harmful electrical disturbances.

The design characteristics of the 1.5SMC24A-E Series include a surface-mount package that facilitates easy integration into printed circuit boards (PCBs), thereby streamlining the assembly process. The SMC package is known for its thermal performance and low inductance, which enhances the diode's ability to absorb transient energy without compromising the circuit's integrity. Furthermore, the series is encapsulated in a robust, environmentally friendly package, making it suitable for a wide range of industrial applications.

These TVS diodes are particularly well-suited for use in consumer electronics, telecommunications equipment, automotive systems, and industrial controls. They provide essential protection in environments where electrical surges are common, such as in power supply circuits, data line protection, and LED lighting fixtures. By offering a reliable solution for over-voltage protection, the 1.5SMC24A-E Series helps prolong the lifespan of electronic devices and ensures uninterrupted operation in the face of electrical disturbances.

In summary, the 1.5SMC24A-E Series stands out as a vital component for engineers seeking to enhance the reliability and durability of their electronic designs against voltage transients, making it an essential choice for modern electronic applications.

Images for reference

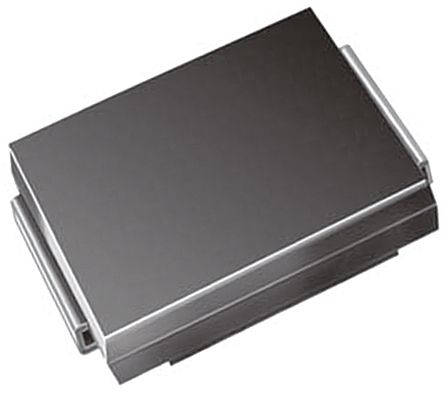

DO-214AB, SMC

DO-214AB, SMC

Image Preview

Image Preview

Image Preview

Image Preview

Datasheets

Partlist

1.5SMC24A-E3/51T
1.5SMC24A-E3/57T
1.5SMC24A-E3/59T
1.5SMC24A-E3/9AT
