1-1393725

Multipole sockets by TE Connectivity

Manufacturer: tyco

series introduction

The 1-1393725 Series is a family of high-performance, low-profile connectors designed to meet the demanding requirements of modern electronic applications. Engineered for versatility and reliability, these connectors are ideal for use in a wide range of industries, including consumer electronics, telecommunications, automotive, and industrial automation.

One of the key features of the 1-1393725 Series is its robust design, which incorporates advanced materials and precision engineering to ensure maximum durability and performance. The connectors are constructed with high-quality thermoplastic housing, providing excellent resistance to heat and environmental factors. This makes them suitable for use in applications that require long-term reliability in challenging conditions. Furthermore, the connectors are available in various pin configurations, accommodating different circuit needs while maintaining a compact footprint.

The series also boasts a low insertion force mechanism that simplifies the mating process, reducing the risk of damage during installation. This feature is particularly beneficial in high-volume production environments where efficiency and reliability are paramount. Additionally, the connectors are designed to support a wide range of electrical specifications, including high current ratings and low contact resistance, ensuring optimal signal integrity and power delivery.

The 1-1393725 Series is particularly well-suited for applications in mobile devices, where space is at a premium, and reliability is crucial. Their low-profile design allows for seamless integration into compact electronic systems, making them ideal for smartphones, tablets, and wearables. Beyond consumer electronics, these connectors are also utilized in automotive applications, including infotainment systems and advanced driver-assistance systems (ADAS), where robust connectivity is essential.

In summary, the 1-1393725 Series stands out as a reliable and versatile connector solution for various electronic applications. With a focus on durability, low profile design, and ease of use, these connectors are engineered to meet the high standards demanded by today’s technology-driven industries, ensuring superior performance and longevity in every deployment.

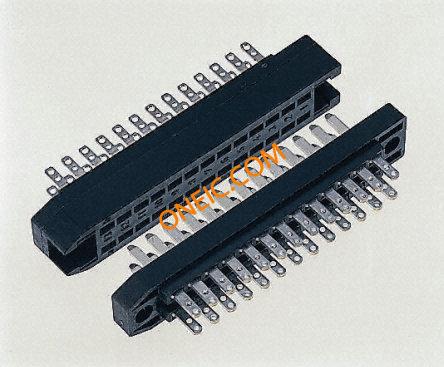

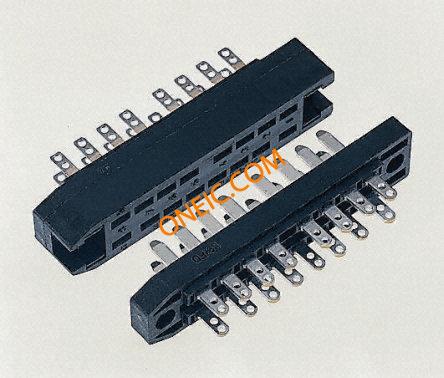

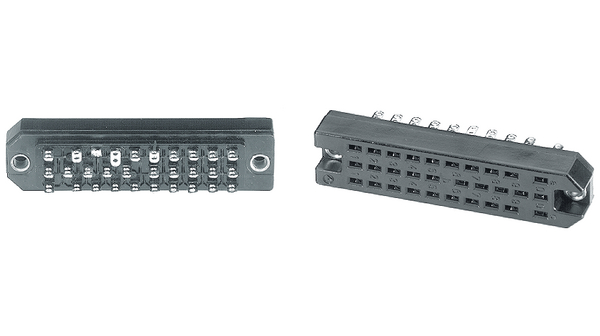

Images for reference

Image Preview

Image Preview

Image Preview

Image Preview

Image Preview

Image Preview

Datasheets

Partlist

1-1393725-2
1-1393725-4
1-1393725-5
1-1393725-6
1-1393725-8
1-1393725-9
