0805YC475

Multilayer ceramic capacitors, 4.7uF, 16V, X7R, 0805 SMD

Manufacturer: avx

series introduction

The 0805YC475 Series is a distinguished line of surface-mount multilayer ceramic capacitors (MLCCs) engineered for a wide array of electronic applications, renowned for their high capacitance values, compact form factor, and robust performance. With a standard EIA size of 0805 (2.0 mm x 1.25 mm), these capacitors are optimized for space-constrained environments, making them ideal for modern electronics that require efficient use of board space without compromising performance.

One of the key features of the 0805YC475 Series is its impressive capacitance value of 4.7 µF, along with a voltage rating suited for a variety of applications. The capacitors utilize a Y5V dielectric material, allowing them to maintain stable capacitance over a temperature range from -30°C to +85°C, and offering a good balance between capacitance value and voltage performance. This makes them particularly suitable for applications that demand reliability and stability under fluctuating conditions, such as in automotive electronics and industrial control systems.

The design of the 0805YC475 Series emphasizes versatility and adaptability, making these capacitors well-suited for numerous use cases, including decoupling, filtering, and energy storage in high-density circuit configurations. Their low equivalent series resistance (ESR) and equivalent series inductance (ESL) characteristics also contribute to enhanced performance in power management applications, where efficient energy transfer and minimal signal distortion are paramount.

Typical applications for the 0805YC475 Series span across a broad spectrum of industries, including consumer electronics, telecommunications, automotive systems, and medical devices. Whether utilized in smartphones, tablets, wearable technology, or advanced automotive safety systems, these capacitors deliver exceptional reliability and performance. The 0805YC475 Series is a prime choice for engineers seeking to optimize circuit designs with high-quality components that can withstand the rigors of modern electronic demands, ensuring long-lasting functionality and efficiency in a compact form.

Images for reference

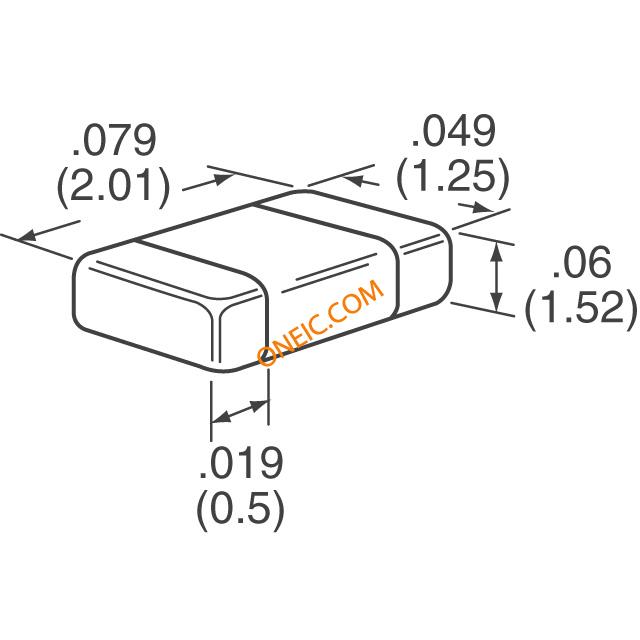

AT2A_0805_1.52

AT2A_0805_1.52

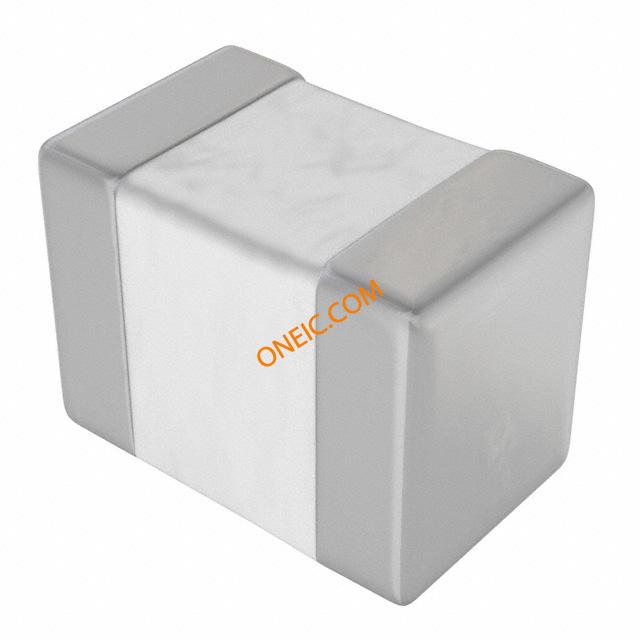

0805xl

0805xl

AT2A_0805_1.52

AT2A_0805_1.52

Datasheets

Partlist

0805YC475KAJ2A
0805YC475KAJ2A500
0805YC475KAT2A-
0805YC475KAT2A/BKN
0805YC475KAT2AR
0805YC475KAT4A
0805YC475MAT2A
0805YC475MAT4A
0805YC475MAT9A
