08055C104J
Multilayer ceramic capacitors, 0.1uF, 50V, X7R
Manufacturer： avx
series introduction
The 08055C104J Series is a distinguished line of surface-mount ceramic capacitors, engineered to meet the demanding requirements of modern electronic applications. These capacitors are characterized by their robust dielectric composition, featuring Class 2 X7R materials that provide a balance of capacitance stability and temperature performance. With a capacitance value of 100,000 pF (or 0.1 µF) and a voltage rating up to 50V, the 08055C104J Series is tailored for a wide array of applications where reliability and efficiency are paramount.
One of the standout features of the 08055C104J Series is its compact 0805 package size, measuring 2.0 mm x 1.25 mm. This miniature footprint is particularly advantageous in today's trend towards miniaturization, enabling integration into high-density circuit boards without compromising performance. The capacitors are designed to operate effectively across a temperature range of -55°C to +125°C, ensuring stable capacitance and reliable performance even in extreme environmental conditions. This makes them ideal for applications requiring thermal resilience.
The design of the 08055C104J Series also emphasizes low equivalent series resistance (ESR) and low equivalent series inductance (ESL), making them suitable for high-frequency applications, such as decoupling and filtering in power supply circuits. Their exceptional performance characteristics make them well-suited for applications in consumer electronics, telecommunications, automotive electronics, and industrial automation systems.
In industrial contexts, these capacitors play a crucial role in smoothing out voltage fluctuations and reducing noise in critical circuits, thereby enhancing overall system reliability. Whether integrated into smartphones, tablets, automotive control systems, or industrial machinery, the 08055C104J Series capacitors deliver unparalleled performance and efficiency. By combining advanced materials with a compact design, this series stands out as an ideal choice for engineers aiming to optimize circuit design while maintaining high standards of performance and durability.
Images for reference
Ceramic 0805

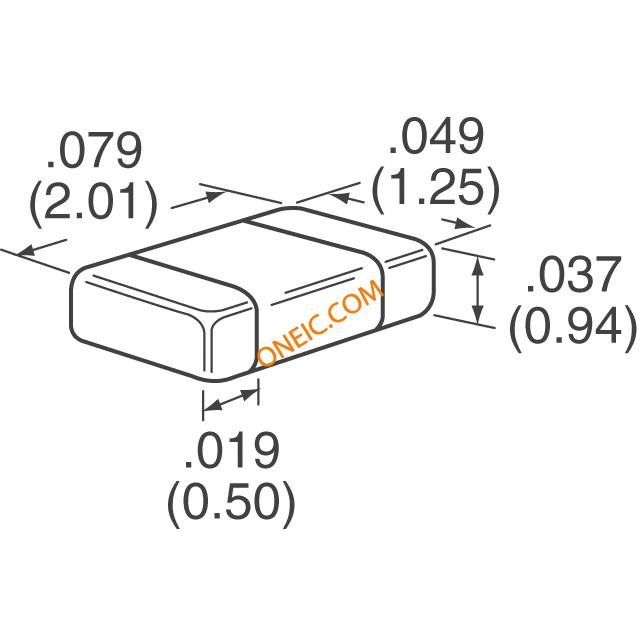

Z2A_0805_0.94
Z2A_0805_0.94
