02R-JWPF

JST JWPF series 2mm pitch PCB connector housing

Manufacturer: ['jst-sales', 'jsp']

series introduction

The 02R-JWPF Series is a robust line of waterproof connectors designed for outdoor and harsh environment applications, known for their reliability, durability, and versatile performance. These connectors feature a compact design with a locking mechanism that ensures a secure connection, protecting against accidental disconnections. The series is engineered with materials that offer excellent resistance to moisture, dust, and extreme temperatures, making them ideal for use in challenging conditions.

Key features of the 02R-JWPF Series include a unique sealing structure that provides IP67-rated waterproofing, ensuring that the connectors can withstand immersion in water and exposure to the elements. This level of protection is crucial for applications in sectors such as automotive, industrial automation, and telecommunications, where equipment is often exposed to moisture and contaminants. The connectors are available in various pin configurations, accommodating a wide range of current and voltage requirements, thus offering flexibility for different applications.

The design characteristics of the 02R-JWPF Series emphasize ease of use and installation. The connectors are equipped with a simple locking mechanism that allows for quick and reliable mating, reducing assembly time and enhancing operational efficiency. Additionally, the connectors are designed with polarization features to prevent incorrect mating, thereby enhancing safety and functionality in complex systems.

Suitable use cases for the 02R-JWPF Series include outdoor lighting systems, agricultural machinery, robotics, and portable electronic devices, where reliable connectivity is essential. Their rugged construction and waterproof capabilities make them an excellent choice for industries that require durable and long-lasting interconnect solutions.

In summary, the 02R-JWPF Series offers a comprehensive solution for applications demanding high performance in adverse conditions. With their combination of robust design, excellent sealing properties, and versatility, these connectors are poised to meet the needs of modern industries, ensuring dependable connections in environments where reliability is paramount.

Images for reference

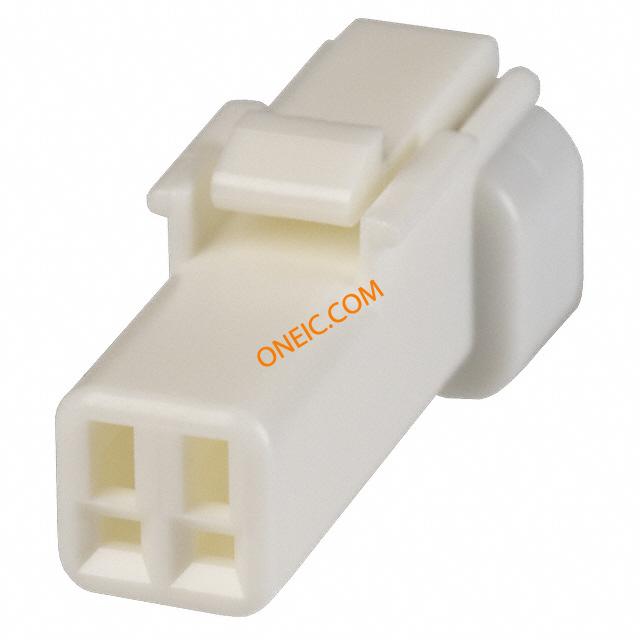

02R-JWPF-VSLE-S

02R-JWPF-VSLE-S

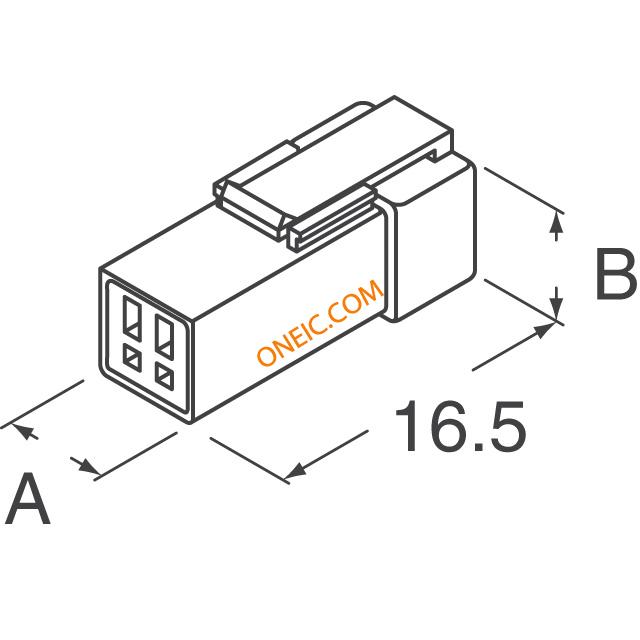

JWPF Series Receptacle

JWPF Series Receptacle

Image Preview

Image Preview

Datasheets

Partlist

02R-JWPF-VKLE-S
02R-JWPF-VRLE-S
02R-JWPF-VSLE-S
